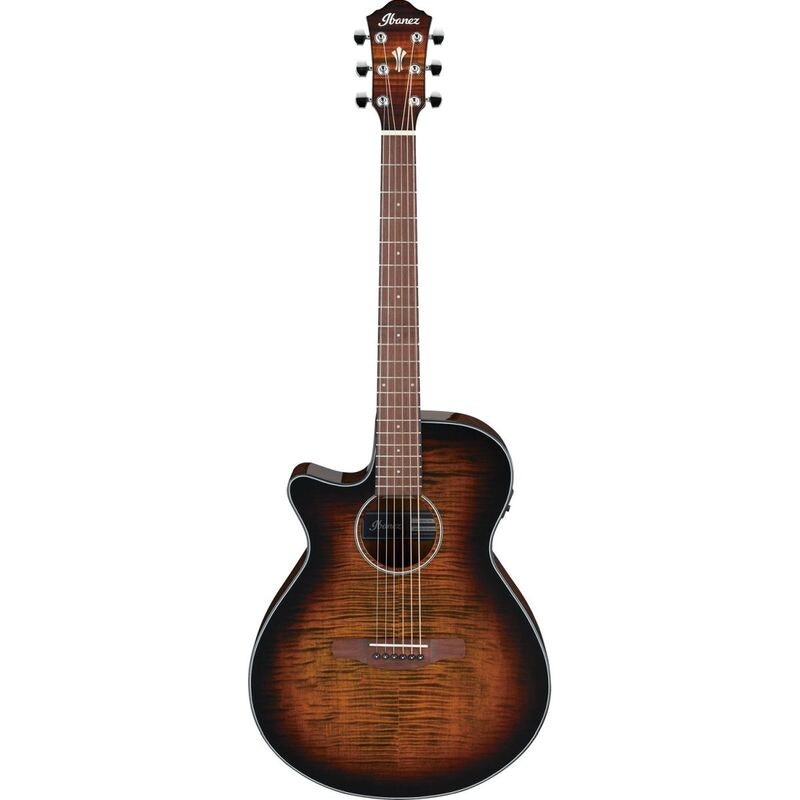

Ibanez AEG70L-TIH Left Hand, Tiger Burst

Acoustic western guitar with pickup, left hand

Ibanez AEG70L-TIH is a left-handed acoustic western guitar with cutaway and built-in electronics. The AEG series features narrow, single-cutaway bodies that provide balanced acoustic tone both unplugged and through an amplifier or PA system.

Construction and materials

The guitar has a flamed maple top and sapele back and sides. The neck is a Comfort Grip Nyatoh neck with satin finish, and the fingerboard and bridge are made of walnut.

Electronics and features

AEG70L-TIH is equipped with an Ibanez T-bar II Undersaddle pickup and AEQ-TTS preamp with onboard tuner. It also includes a ¼" output for connection to amplifiers or PA systems.

Design and details

The single-cutaway AEG body allows easier access to the higher frets. The guitar has Ibanez Advantage bridge pins, chrome die-cast tuners, and an acrylic rosette. Finish is Tiger Burst High Gloss.

Specifications

Body:

• Single-cutaway AEG
• Flamed maple top
• Sapele back & sides
• Walnut bridge
• Tiger Burst High Gloss finish
• Body length: 489 mm
• Body width: 381 mm

• Body depth: 83 mm

Neck:

• Nyatoh with satin finish
• Fingerboard: Walnut
• Scale length: 635 mm
• Width at nut: 43 mm
• Width at 14th fret: 55 mm
• Thickness at 1st fret: 20 mm
• Thickness at 7th fret: 21 mm

• Radius: 400 mmR

Electronics:

• Ibanez T-bar II Undersaddle pickup
• Ibanez AEQ-TTS preamp with tuner

• ¼" output
