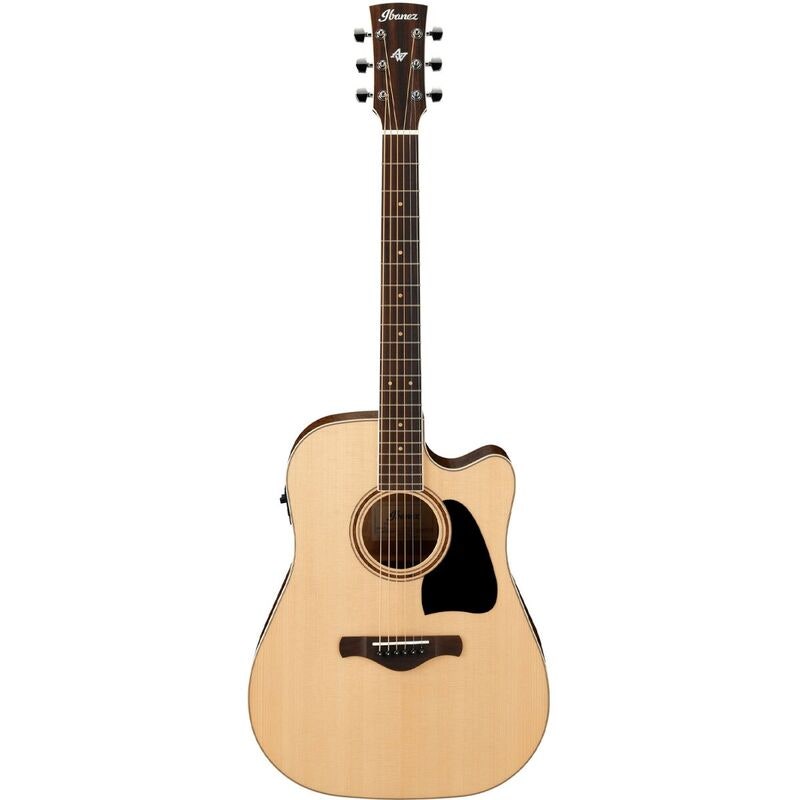

Ibanez AW417CE-OPS Artwood, Open Pore

Acoustic guitar with built-in pickup

Ibanez AW417CE-OPS is a cutaway acoustic western guitar with onboard electronics, part of the Artwood series. This series combines traditional luthiery with modern construction methods to achieve a natural and balanced tone.

Construction and materials

The guitar features a solid Sitka spruce top for a clear and well-defined sound. The flamed okoume back and sides contribute warmth and tonal depth. The nyatoh neck is paired with a pau ferro fingerboard and bridge, featuring subtle maple inlays. The neck is slightly wider – 48 mm at the nut – making it suitable for players with larger hands or those alternating between classical and steel-string guitars.

Electronics and functionality

Equipped with an Ibanez T-bar undersaddle pickup and AEQ-TP2 preamp with built-in tuner, the AW417CE-OPS offers both balanced XLR and ¼" outputs, providing flexibility for stage performance and recording.

Design and details

The cutaway dreadnought body allows easier access to higher frets. Other details include a bone nut and compensated saddle, chrome die-cast tuners, wooden rosette, and Ibanez Advantage™ bridge pins for convenient string changes. The Open Pore Semi Gloss finish preserves the natural resonance of the tonewoods.

Specifications

Body:

• Cutaway dreadnought shape
• Solid Sitka spruce top
• Flamed okoume back and sides
• Wooden rosette

• Open Pore Semi Gloss finish

Neck:

• Nyatoh with satin finish
• Fingerboard: Pau Ferro with maple inlays
• Scale length: 651 mm
• Width at nut: 48 mm
• Width at 14th fret: 60 mm
• Thickness at 1st fret: 21 mm
• Thickness at 7th fret: 22 mm

• Radius: 400 mmR

Electronics:

• Ibanez T-bar undersaddle pickup
• Ibanez AEQ-TP2 preamp with tuner

• Balanced XLR and ¼" outputs

Other:

• Pau Ferro bridge
• Bone nut and compensated saddle
• Chrome die-cast tuners
• Ibanez Advantage™ bridge pins

• Strings: D’Addario® XTAPB1253 (.012–.053)
