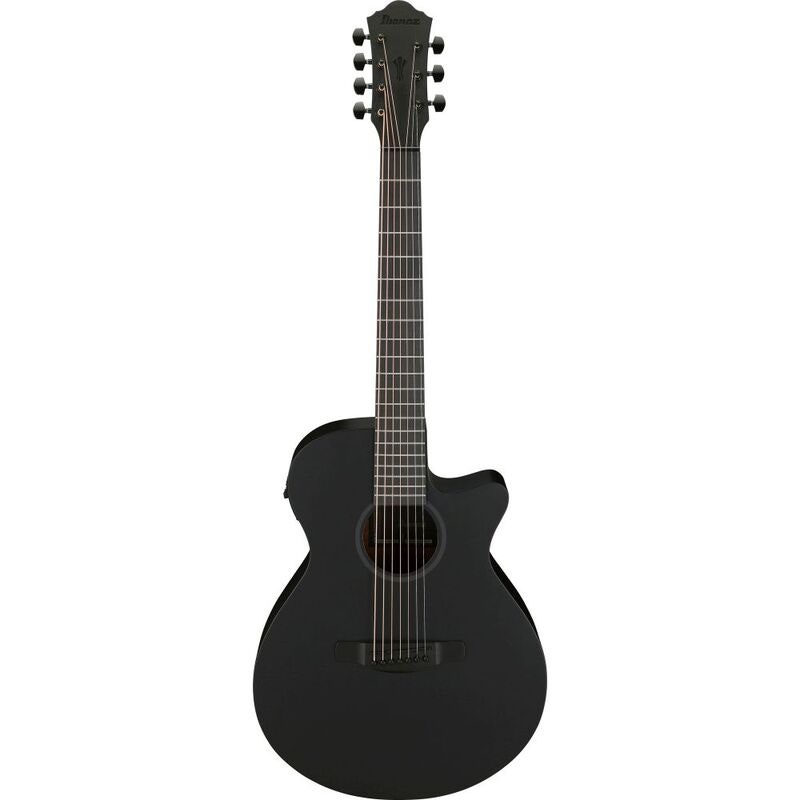

Ibanez AEG721-BOT 7-string, Black Out

7-string acoustic western guitar with pickup

Ibanez AEG721-BOT is a 7-string acoustic western guitar with cutaway and built-in electronics. The AEG series features narrow, single-cutaway bodies that provide balanced acoustic tone both unplugged and through an amplifier or PA system.

Construction and materials

The guitar has a spruce top and sapele back and sides for a balanced sound. The neck is a 3-piece Comfort Grip nyatoh neck with satin finish, and the fingerboard and bridge are made of Macassar Ebony.

Electronics and features

AEG721-BOT is equipped with a Fishman Sonicore pickup and AEQ-SP2 preamp with onboard tuner. It offers both balanced XLR output and ¼" output for stage and recording.

Design and details

The single-cutaway AEG body allows easier access to the higher frets. The guitar features Ibanez Advantage™ bridge pins, bone and compensated saddle, and Black Die-cast tuners. Finish is Black Out. Strings are D’Addario XTAPB1253 + 070, factory-tuned 1E–7B.

Specifications

Body:

• Single-cutaway AEG shape
• Spruce top
• Sapele back & sides
• Macassar Ebony bridge
• Black Out finish
• Body length: 490 mm
• Body width: 381 mm

• Body depth: 83 mm

Neck:

• 3-piece Comfort Grip nyatoh with satin finish
• Fingerboard: Macassar Ebony
• Scale length: 634 mm
• Width at nut: 50 mm
• Width at 14th fret: 64 mm
• Thickness at 1st fret: 21.5 mm
• Thickness at 7th fret: 22.5 mm

• Radius: 400 mmR

Electronics:

• Fishman Sonicore pickup
• Ibanez AEQ-SP2 preamp with tuner
• Balanced XLR & ¼" output
