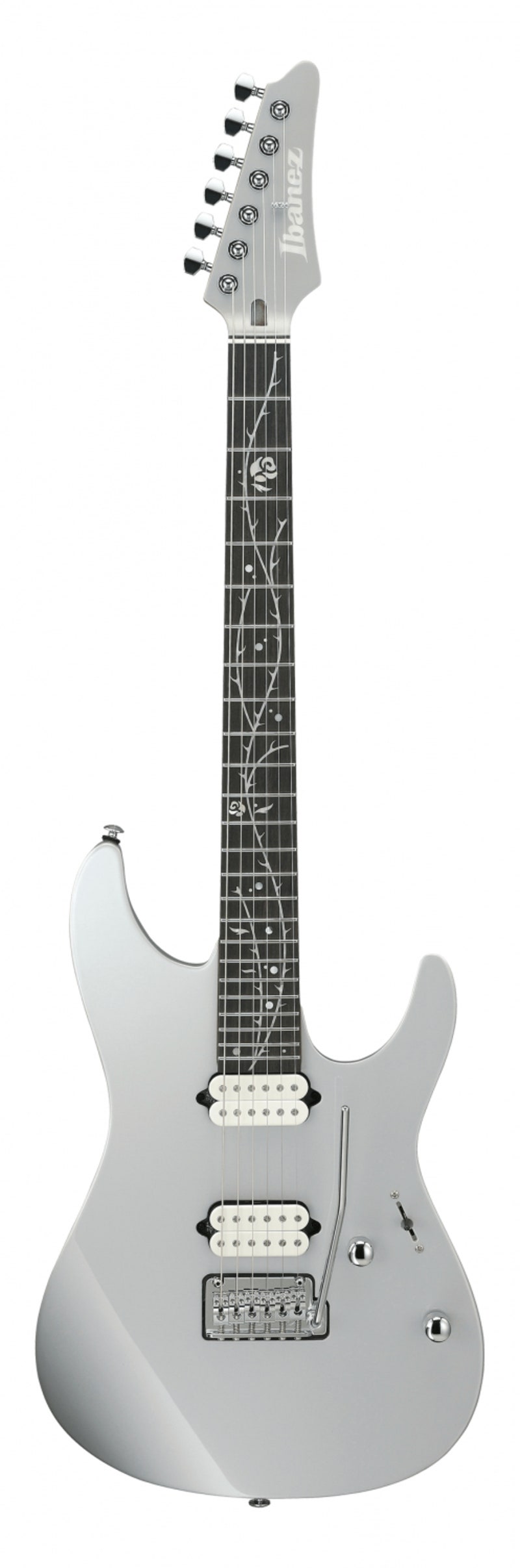

Ibanez TOD10 Tim Henson Polyphia Signature - Classic Silver

Electric Guitar with Gigbag – Tim Henson Signature

Ibanez TOD10 – Classic Silver

Developed in collaboration with Tim Henson of Polyphia, the TOD10 is a signature model that combines design elements from the Ibanez AZ series with unique aesthetic and technical features. The fretboard features the distinctive “Tree of Death” inlay, a personal take on Ibanez’s well-known “Tree of Life” pattern.

Neck and Playability

The one-piece roasted maple neck has an AZ Oval C profile, offering a balanced blend of comfort and stability. The ebony fretboard features rolled edges for a smooth feel and is equipped with luminescent side markers. With 24 jumbo stainless steel frets and a 305 mm radius, the neck is suited for both chord and lead playing.

Body and Construction

The American basswood body is shaped for high playing comfort, with rounded edges and the improved Super All Access Neck Joint for easy reach to the highest frets without compromising resonance.

Electronics and Bridge

Two Fishman Fluence Tim Henson Signature humbuckers provide a versatile tonal range. The Ibanez T1502 tremolo bridge, co-developed with Gotoh, features an improved arm socket and 10.5 mm string spacing for precision and stability. Gotoh MG-T locking tuners and a Graph Tech nut ensure reliable tuning performance.

Specifications

• Neck: 1-piece roasted maple, AZ Oval C profile
• Scale length: 648 mm / 25.5"
• Width at nut: 42 mm
• Width at 24th fret: 57 mm
• Thickness at 1st fret: 20.5 mm
• Thickness at 12th fret: 22.5 mm
• Radius: 305 mm
• Fretboard: Ebony with “Tree of Death” inlay
• Body: American basswood
• Frets: 24 jumbo stainless steel
• Nut: Graph Tech
• Tuners: Gotoh MG-T locking
• Bridge: Ibanez T1502 tremolo (Gotoh)
• Pickups:
• Fishman Fluence Tim Henson Signature (neck)
• Fishman Fluence Tim Henson Signature (bridge)
• Hardware: Chrome
• Included: Gigbag
