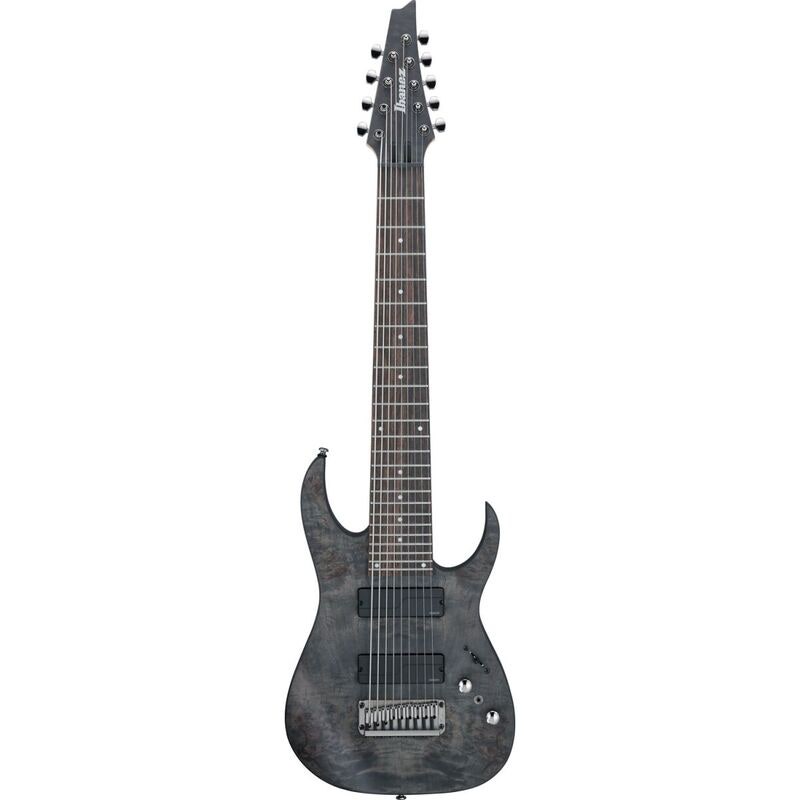

Ibanez RG9PB Axe Design Lab 9-string - Transparent Gray Flat

9-String Electric Guitar from Axe Design Lab

Neck and Construction

The RG9PB-TGF features a 5-piece Wizard-9 neck made of maple and walnut with a 712 mm scale length, providing stable low notes without feeling like a bass. The neck is wide and thick enough to accommodate the strings while maintaining playability.

Body and Tonewoods

The body is crafted from lightweight Nyatoh with a Poplar Burl top, offering a balanced frequency response across the entire range. This makes the guitar suitable for various tones, especially distorted sounds that remain focused and clear.

Electronics and Features

Equipped with Fishman Fluence Modern humbuckers in both neck and bridge positions, controlled by a 5-way switch offering multiple pickup combinations. The volume control includes a push/pull function for the Fishman Voicing switch, and the guitar features a coil tap for additional tonal options.

Additional Details

The Gibraltar Standard II-9 bridge and Graph Tech nut provide tuning stability and intonation accuracy. Dual truss rods allow neck adjustments, and jumbo frets facilitate playing technique. Hardware is finished in Cosmo Black, and the guitar comes with a recommended hard case.

Specifications

• 5-piece Wizard-9 neck in maple/walnut
• 712 mm scale length
• Nyatoh body with Poplar Burl top
• Macassar ebony fretboard with white dot inlays
• Jumbo frets
• Dual truss rods
• Gibraltar Standard II-9 bridge
• Fishman Fluence Modern humbuckers (Alnico 9 neck, Ceramic 9 bridge)
• 5-way switch, coil tap, push/pull voicing switch
• Graph Tech nut
• Cosmo Black hardware
• String gauges: 009–090
• Recommended case: MR500C
• Neck dimensions: 62 mm nut width, 88 mm width at last fret, 21.5 mm thickness at 1st fret, 23.5 mm thickness at 12th fret, 950 mm radius
