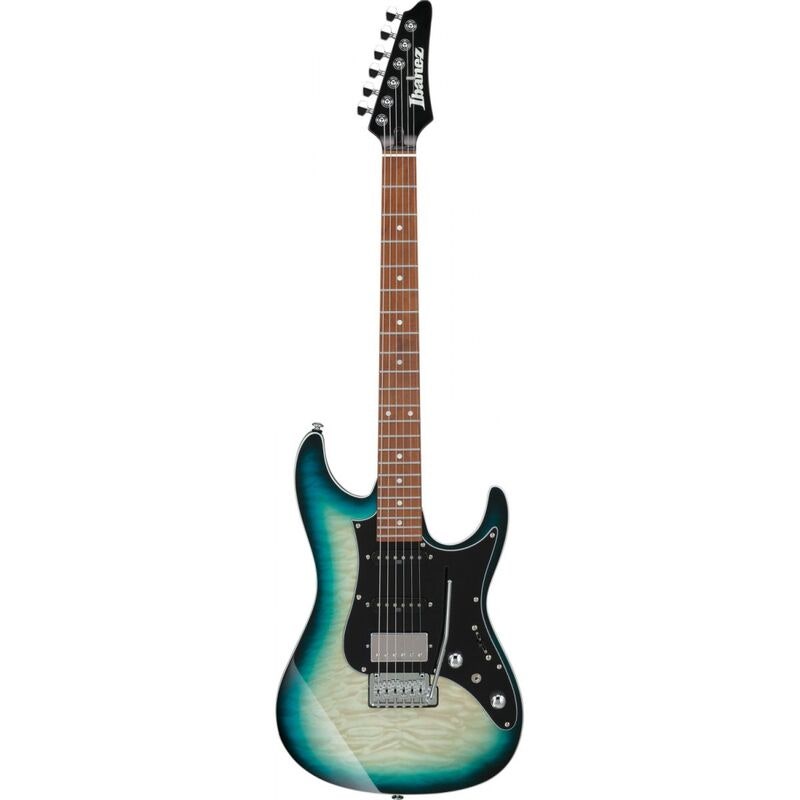

Ibanez LH AZ24P1QM Premium - Deep Ocean Burst

Electric Guitar – Ibanez AZ24P1QM Premium Deep Ocean Burst (Left-Handed)

The AZ24P1QM is part of Ibanez's Premium series, developed with a focus on playability, stability, and tonal versatility. Designed for a wide range of musical styles, it features components and construction suited for both live and studio performance.

Neck and Fretboard

The neck is made from roasted maple with an oval C profile that’s slightly fuller than standard Ibanez necks. Vacuum roasting enhances resistance to humidity and temperature changes while providing dry, resonant tonal characteristics. An oil finish ensures a smooth, non-sticky playing surface.
The roasted maple fretboard features rounded edges and 24 jumbo stainless steel frets for comfort and durability.

Body Design

The body, made from American basswood with a quilted maple top, features rounded contours for playing comfort during long sessions. The Super All Access Neck Joint allows easy access to higher frets without compromising neck stability.

Electronics and Pickups

Three Seymour Duncan Hyperion pickups – two single coils and one humbucker – deliver dynamic, clear tones with Alnico V magnets. The Dyna-MIX9 switching system with Alter Switch enables a wide range of pickup combinations and sound variations.

Bridge and Hardware

The Gotoh T1502 tremolo bridge, based on the 510 model, includes dual pivot points and an upgraded, wobble-free arm mount. Gotoh MG-T locking tuners provide stable tuning performance.

Specifications

• Material: American basswood
• Top: Quilted maple
• Finish: Deep Ocean Burst

Neck

• Material: Roasted maple
• Profile: Oval C
• Scale length: 648 mm (25.5")
• Nut width: 42 mm
• Thickness: 20.5 mm (1st fret), 22.5 mm (12th fret)
• Fretboard radius: 305 mm

Fretboard

• Material: Roasted maple
• Inlays: Mother of Pearl dots
• Frets: 24 jumbo stainless steel
• Side dots: Luminescent

Electronics

• Pickups: Seymour Duncan Hyperion S-S-H
• Switching: Dyna-MIX9 with Alter Switch
• Controls: Volume, tone, 5-way selector

Hardware

• Bridge: Gotoh T1502 tremolo
• Tuners: Gotoh MG-T locking
• Hardware color: Chrome

Other

• Includes gig bag
