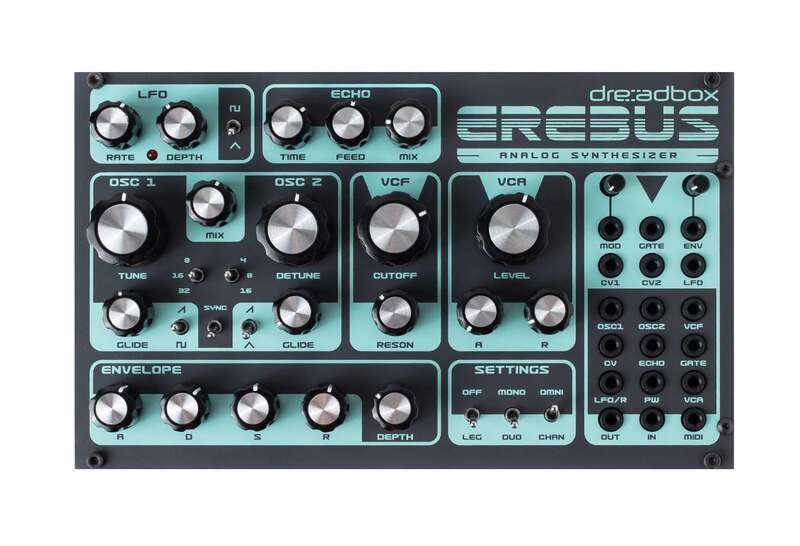

Dreadbox Erebus Reissue

FEATURES

• Desktop standalone unit
• Eurorack compatible
• Powered by a simple USB adapter for maximum portability and energy efficiency
• 2 VCO’s with the ability to work into paraphony
• 2 waveform / VCO and Hard sync function (new from the old version!)
• Separate glide controls for each VCO
• 2 pole Dreadbox Low pass - pre fed filter
• OTA VCA
• Lo-fi delay
• 1 ADSR envelope and a AR amp envelope , drastically improved from the original version
• 1 x wide range LFO that can go well into the audio rate
• 18 x patch point to interact with eurorack gear
• CV outs: LFO, Envelope, Modulation well, Gate, CV1(1v/oct for oscillator1), CV2(1v/oct for oscillator2)
• CV ins: Osc1 (1v/ocv for osc1), Osc2 (1v/ocv for osc2), Echo time, Filter CUT off, CV (1v/ocv for both osc),
• GATE, LFO rate, PW (width of the square wave of OSC1), VCA.

Specs

- Full analog synth, faithful reproduction of the 1st Erebus version ( produced through 2014-2016)

- Midi interface: Midi In 3,5mm type A socket, responds to Pitch , Note On/Off, Mod wheel, Pitch wheel, and to all channels + OMNI channel (via midi learn)

- Mono Audio in

- Mono audio out - Can be also used with headphones, max output is 5vpp- depending on the setting

 - All patch points are 3,5mm mono action (except of the MIDI and AUDIO out)

- GATE in : 0-5V

- Gate out : 0-5v

- CV IN, OSC1 and OSC2 inputs : +/-10v , works with 1v/ocv

- CUT cv in: +/-5v

- MOD wheel out: 0-5v

- ENV out :0-5v

- LFO out : +/-5v

- LFO rate CV in : +/-5v

- PW in : +/-5v

- Echo cv in: +/-5v

- VCA cv in: 0-5v

- Suggested room temperature for vco stability: 12 - 35 Celsius
