Soma Terra Organic Light
TERRA on uniikki soitin, jonka ydinideana on luonnon ja tekniikan symbioosi ja jonka äärimmäisen yksinkertaisen käyttöliittymän taakse kätkeytyy monimutkainen polyfoninen, mikrotonaalinen syntetisaattori
Behind the extremely simple interface hides a complex polyphonic, microtonal synthesizer with a broad and flexible sound palette that ranges from classical beautiful tones to complex atonal noise, and offers smooth and fast transitions between these extremes.

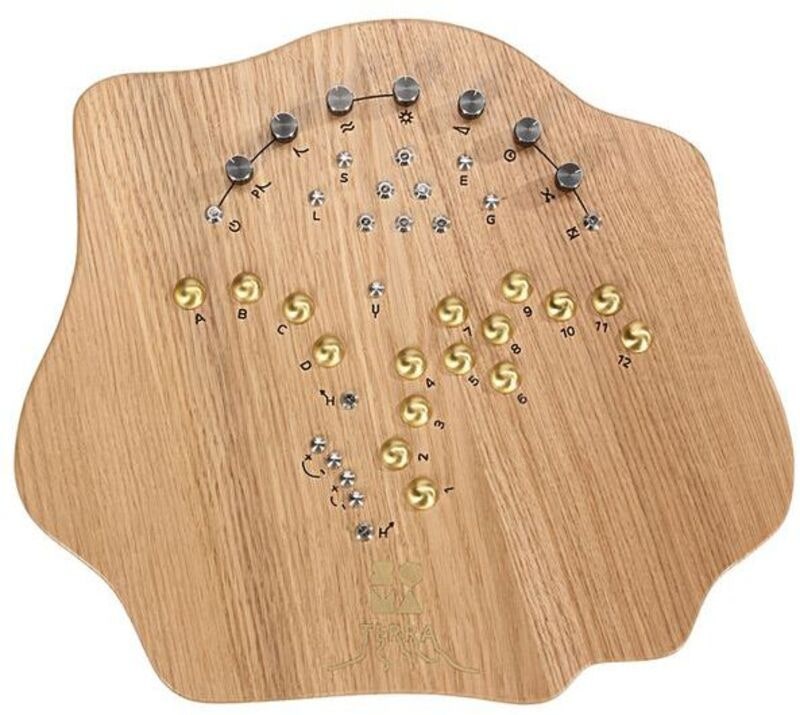

The innovative keyboard design invites new playing techniques and covers the full range of a grand piano with the possibility to tune each note with an accuracy of 125 steps per semitone. To achieve this range with such a simple keyboard we designed a unique system of pitch shifting using four additional sensors. Pressing different combinations of them will result in 16 variations of keyboard transposing, including up to 3 octaves up and down, fifth, fourth, third, tone etc. Not only do you get the full range of a grand piano in a very compact design, TERRA also offers an entirely new and different approach to playing melodies and chords.
|Polyphony:||1-12 voices (depending on the algorithm)|
|Pitch Shifter presets:||24|
|Line out:||L, R TS/TRS 1/4-inch jacks / 6.35 mm jacks|
|Maximum line output signal:||13 V peak-to-peak|
|Nominal line output signal:||~1.5 V (volume 100%)|
|Headphone output:||TRS 1/4 inch jack / 6.35 mm jacks|
|Headphones impedance:||6-64 ohm|
|CV-clock input voltage:||3-15 V|
|Power supply voltage:||DC 12 V *|
|Consumption current:||0.2 Atd|
|DC jack:||5.5 x 2.1 mm, “+” in center|
|Dimensions:||405 х 365 х 57 mm|
* TERRA comes with a high quality power supply . If it gets lost, use a high-quality modern switched-mode power supply with 12 V output voltage, at least 0.4 A maximum current, 5.5 x 2.1 mm DC jack, center “+”.
