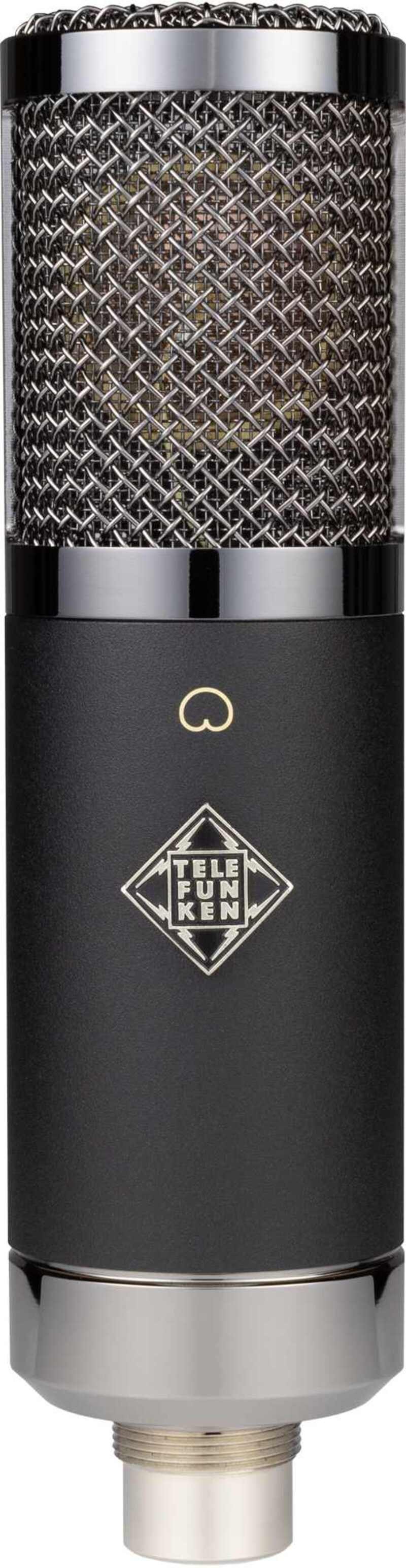

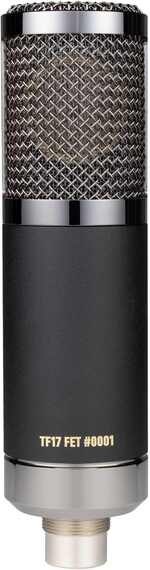

Telefunken TF17 FET

Features

• Bold and forward tone with punchy transient response
• Compact size suitable for all recording environments
• Fixed true cardioid polar pattern with K47-style capsule
• High SPL handling, low noise phantom-powered FET amplifier
• UK-made OEP/Carnhill transformer with high grade nickel-iron core
• Designed and assembled by hand in the USA
• Recommended Applications: Vocals, Drums & Percussion, Electric Guitar, Live Sound

Technical Specifications

Type: FET Condenser
Polar Pattern: Cardioid
Frequency Range: 20 Hz – 20 kHz, ±3 dB
Power Source: +48V Phantom Power
Capsule: TK47S – Center Terminated Large Diaphragm, Single Membrane
Transformer: OEP/Carnhill T217
Sensitivity: 12 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier): 0.01%
Output Impedance: < 200 Ω
Maximum SPL (for 1% THD): > 135 dB
S/N Ratio: 91 dBA
Self Noise (Amplifier): 3 dBA
Dimensions: 175 mm L x 46 mm Dia
Weight: 545 g
Included Accessories: Shock Mount, Stand Mount, Mic Sleeve, Mic Case
