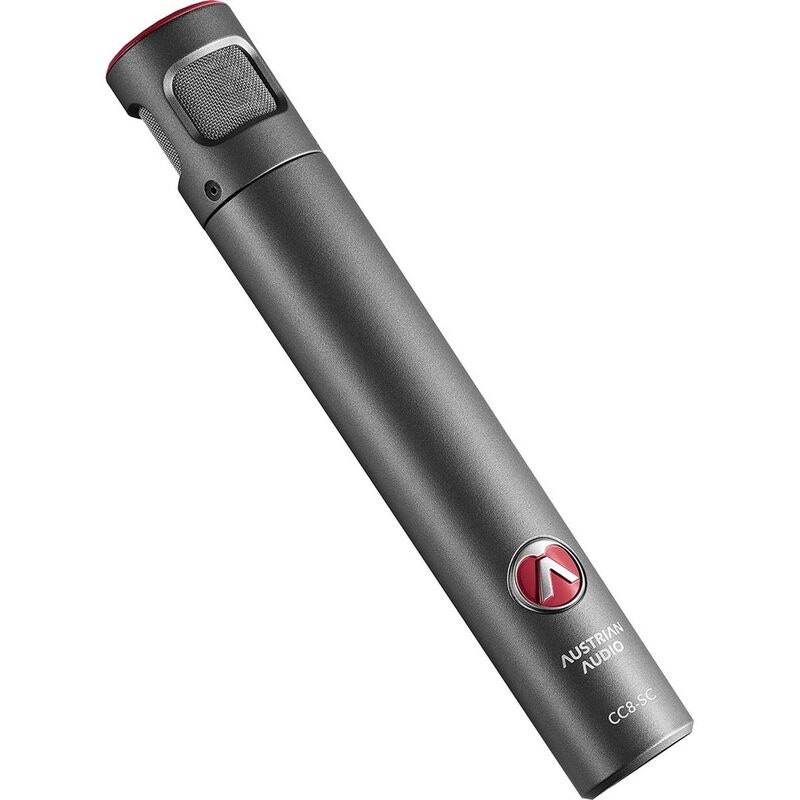

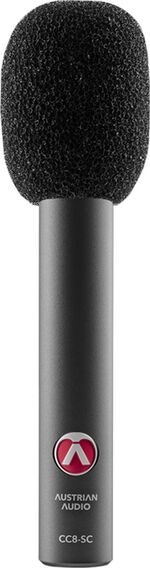

Austrian Audio CC8-SC
Tuotenumero 50028779PIenikalvoinen kondensaattorimikrofoni
CC8-SC – Supercardioid True Condenser Microphone with Low Self-Noise and High SPL Handling
The CC8-SC is a supercardioid small-diaphragm condenser microphone from Austrian Audio, designed for demanding studio and live applications. It features the OCC7 capsule and a transformerless circuit for transparent, natural sound with linear frequency response and minimal self-noise.
Overview and Features
The CC8-SC delivers crystal-clear recordings even at extreme sound pressure levels thanks to a low self-noise of 13 dB(A) and maximum SPL handling of 155 dB. The supercardioid pickup pattern isolates the source effectively while minimizing bleed from surrounding instruments. Subtle high- and low-end roll-offs reduce unwanted overtones and stage noise at the source.
Construction and Materials/Components
The microphone is built with the OCC7 small-diaphragm capsule, manufactured in-house in Vienna. The transformerless circuit design provides linear and transparent sound reproduction. The housing is robust, suitable for both studio and live use.
Connections and Integration
Not specified
Control and Workflow

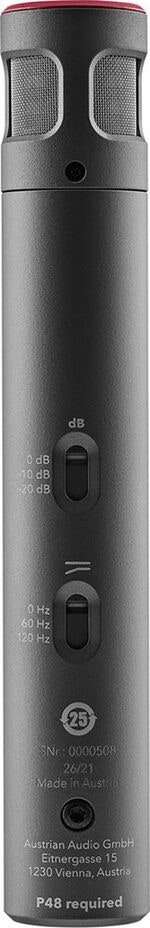

- Low-cut filter – switchable to reduce unwanted bass and stage noise.
- Pad – switchable to handle high SPL without distortion.
In-Depth – Format, Standards, and Compatibility
Format/Standards
Small-diaphragm condenser, supercardioid.
Power Supply and Requirements
Phantom power, 48 V DC (Not specified in more detail).
Specifications
- Type/Category: Supercardioid True Condenser Microphone
- Materials/Components: OCC7 small-diaphragm capsule, transformerless circuit
- Self-Noise: 13 dB(A)
- Max SPL: 155 dB
- Pickup Pattern: Supercardioid
- Controls: Low-cut filter, pad
- Power Supply: Phantom power, 48 V DC
- Type: Condenser
- Polar Pattern: Super Cardioid
- Freq. Response; 20Hz - 20 kHz
- Pads/Filters: -10 dB, -20 dB
- Impedance: 275 Ohms
- Dimentions: 140 x 23 x 23 mm
- Weight: 160 g
