Algam Lighting Wireless Receiver

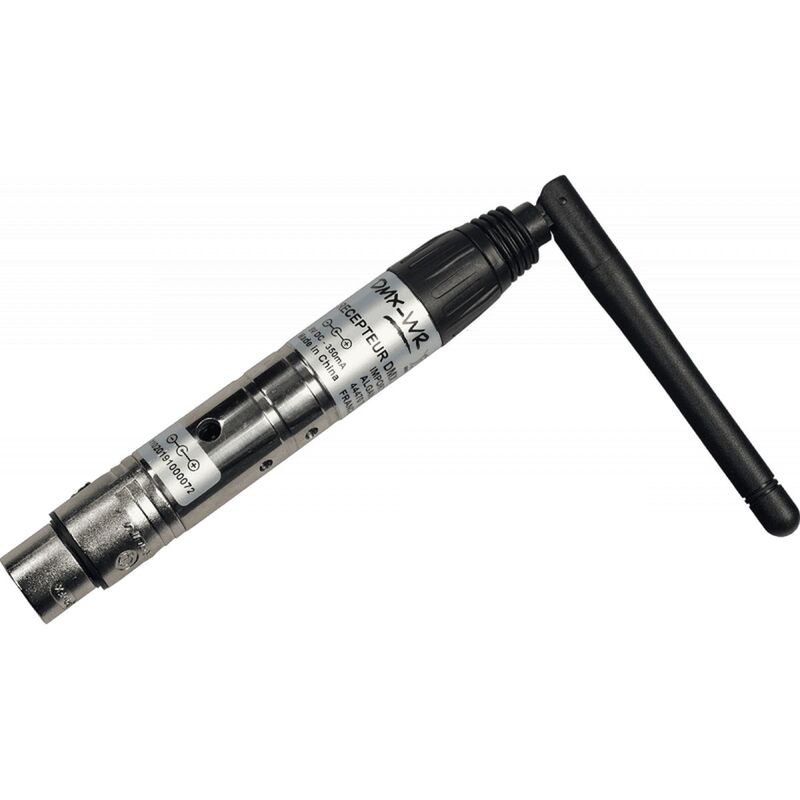

Wireless DMX Receiver

DMX-WR is a wireless DMX receiver that enables remote control of lighting equipment without a built-in wireless module.

Easy Setup and Reliable Transmission

A single receiver connects to the first device in the DMX chain and allows wireless control of multiple devices. The system features pairing memory and can transmit up to 512 DMX channels with unlimited groups.

Technical Specifications

• Wireless DMX receiver
• Frequency: 2.4 GHz (ISM band)
• Extended spectrum: FHSS, 1100 hops/sec
• Data transfer: DMA – 32-bit ARM
• Frequency band: 2402–2480 MHz
• Maximum range: 400 meters
• DMX connection: XLR 3-pin male
• DMX channels: 512 per group
• Power supply: 5V DC
• Power consumption: 350 mA
• Weight: 210 g
• Supplied with 5V DC power adapter
