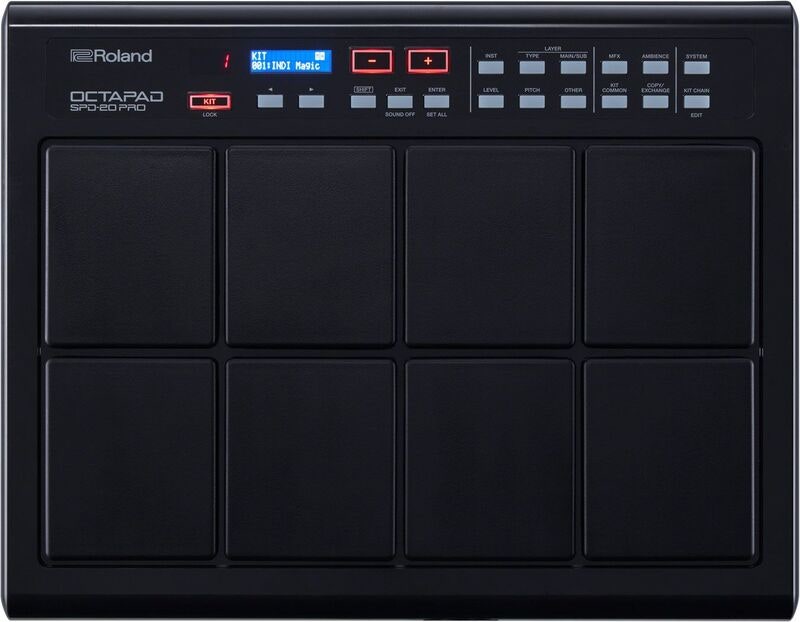

The OCTAPAD SPD-20 PRO offers the famous eight-pad layout, legendary sounds, and rugged durability of the original SPD-20, newly enhanced with more responsive playability, additional sounds and functions, and an updated user interface. Compact and portable, the OCTAPAD SPD-20 PRO delivers everything you need to authentically cover percussion in all music genres and settings, from small groups to large-scale ensembles.

• The original SPD-20 sound set, augmented with all-new percussion sounds for a wider sonic palette
• Includes a broad selection of world percussion, with more than 900 instruments to choose from
• 200 customizable percussion kits, including 100 ready-to-play presets
• Eight cushioned rubber pads provide even and accurate triggering, improved dynamic response, and excellent isolation between pads
• Four external dual-trigger inputs and a dedicated hi-hat control input allow connection of additional pads and pedals, including a kick pad and hi-hat controller pedal to create a mini drum kit
• Dedicated buttons for adjusting sound-editing parameters while performing
• LCD + LED screens with backlights for easy visibility on dark stages
• USB memory port for backing up settings and kit data
• Pad Link enhanced with the ability to layer up to 32 sounds and assign independent transmit/receive settings (added with the Version 1.1 update)
• Increase/decrease specific parameter values with an external footswitch and view value changes on screen (added with the Version 1.1 update)
• Black finish
• Designed in Japan





Specifications

Pads	Built-in Pads: 8 * Four external trigger inputs are provided, allowing you to connect Pads
Instruments	Instruments: 900 instruments or greater
Kits	200 (Preset: 100)
Kit Chain	16 chains (16 steps per chain)
Layer	2 layers per pad, 2 layers x 2(Head/Rim) per external Trigger
Instrument /Pad Parameters	Volume, Curve, Coarse Tune, Fine Tune, Pedal Bend, Decay, Output, Layer EQ, Pad comp, Pad Mute Group, Pad Link
Kit Effects	Ambience (5 Types), Kit EQ, Kit Comp, MFX : 3 systems, 38 types
Display	16 characters 2 line (backlit LCD), 7 segments, 3 characters (LED)
Connectors	PHONES Jack: Stereo 1/4-inch phone type, OUTPUT(L/MONO, R) Jacks: 1/4-inch phone type, MIX IN Jack: Stereo 1/4-inch phone type, EXTERNAL TRIGGER INPUT Jack : 1/4-inch TRS phone type x 4, HH CTRL Jack: 1/4-inch phone type, FOOT SW Jack: 1/4-inch TRS phone type, MIDI (IN, OUT) Connectors, USB MEMORY port: USB A type
Power Supply	AC adaptor (DC 12 V)
Current Draw	500 mA
Dimensions	450(W) x 350 (D) x 72 (H) mm, 17-3/4 (W) x 13-13/16 (D) x 2-7/8 (H) inches
Weight	3.7 kg / 8 lbs 3 oz (excluding AC Adaptor)
