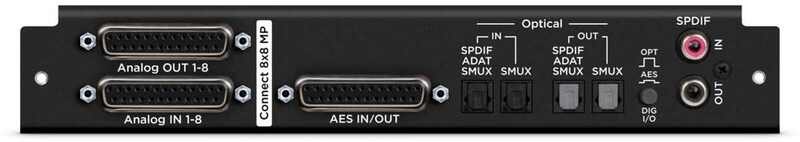

Apogee Connect 8X8MP

INPUTS

• Analog IN: 8 balanced inputs on 1 DSUB 25-pin connector
• 8 microphone preamps with up to 72dB of gain
  • Featuring Advanced Stepped Gain Architecture™
• *AES-EBU IN: 8 inputs on 1 DSUB 25-pin connector
  • (192k single wide compatible)
• *Optical IN: Supports ADAT, SMUX & S/PDIF
  • ADAT: 8 channels 44.1-48 kHz
  • SMUX: 8 channels 88.2-96 kHz
  • S/PDIF: 2 channels, up to 96 kHz
• Coax IN: 2 channels of S/PDIF, up to 192 kHz

OUTPUTS

• Analog OUT: 8 balanced outputs on 1 DSUB 25-pin connector
• *AES-EBU OUT: 8 outputs on 1 DSUB 25-pin connector
  • (192k single wide compatible)
• *Optical OUT: Supports ADAT, SMUX & S/PDIF
  • ADAT: 8 channels 44.1-48 kHz
  • SMUX: 8 channels 88.2-96 kHz
  • S/PDIF: 2 channels, up to 96 kHz
• Coax OUT: 2 channels of S/PDIF, up to 192 kHz

* Hardware switch selects AES or Optical digital input format
