Audioscope 2813-E - Real-Time Spectrum Analyzer

NOTE: Used real-time spectrum analyzer from Audioscope. Good condition. 6-month warranty.

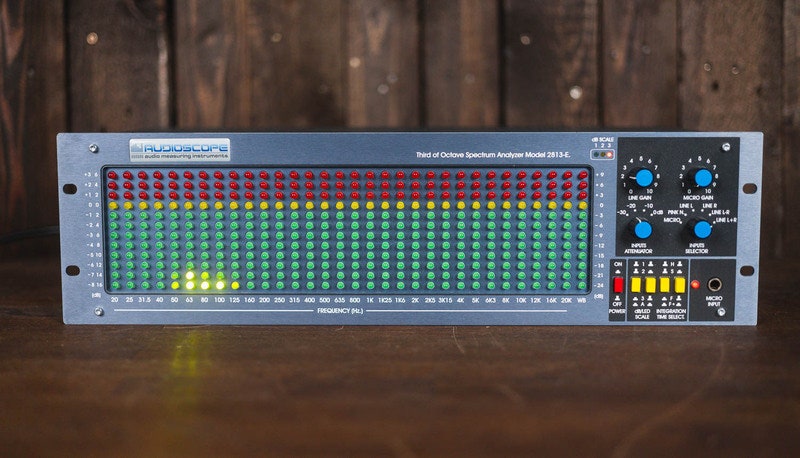

Audioscope 2813-E – 1/3 Octave Real-Time Spectrum Analyzer

The Audioscope 2813-E is a 1/3 octave real-time spectrum analyzer designed for precise monitoring and measurement of sound frequencies from 20 Hz to 20 kHz. It features 31 bandpass filters and a wideband mode, making it suitable for both audio engineering and acoustic measurement applications.

Display and signal management

The 32-column LED display presents frequency levels with 12 LEDs per column. Scale resolution can be set to 1, 2, or 3 dB per LED, and the automatic scaling function adjusts the display according to signal level. Dynamic range display options include 12, 24, or 36 dB.

Inputs and connectivity

The Audioscope 2813-E offers multiple input options: Microphone, Pink Noise, Line L, R, L+R, and L–R. The microphone input is electronically balanced at 600 ohms and provides +12 V phantom power via a 6.3 mm front jack. Recommended microphones are the M100 or M200 models. Line inputs are electronically balanced XLR connectors, with a matching balanced XLR output.

Functions and operation

An integrated pink noise generator is included for calibration and measurement. Integration time can be adjusted between four settings: 1/4 s (Fast+), 1 s (Fast), 4 s (Slow), and Hold mode.

Construction and power

The unit is rack-mounted (3U) and operates on 100–240 V AC at 50/60 Hz with a power consumption of 55 W. Weight: 6 kg.

Specifications

• Real-time spectrum analyzer with 31 bands (1/3 octave) + wideband
• Frequency range: 20 Hz – 20 kHz
• 2-pole bandpass filters
• 32-column LED display with 12 LEDs per column
• Scale resolution: 1, 2, 3 dB + auto scale
• Dynamic display: 12, 24, 36 dB
• Inputs: Microphone, Pink Noise, Line L, R, L+R, L–R
• Microphone input: 600 ohm, electronically balanced, +12 V phantom power
• Line inputs: 600 ohm, electronically balanced, XLR
• Pink noise generator with balanced XLR output
• Integration times: 1/4 s, 1 s, 4 s, Hold
• Power supply: 100–240 VAC, 50/60 Hz, 55 W
• Format: 3U rack, weight 6 kg
