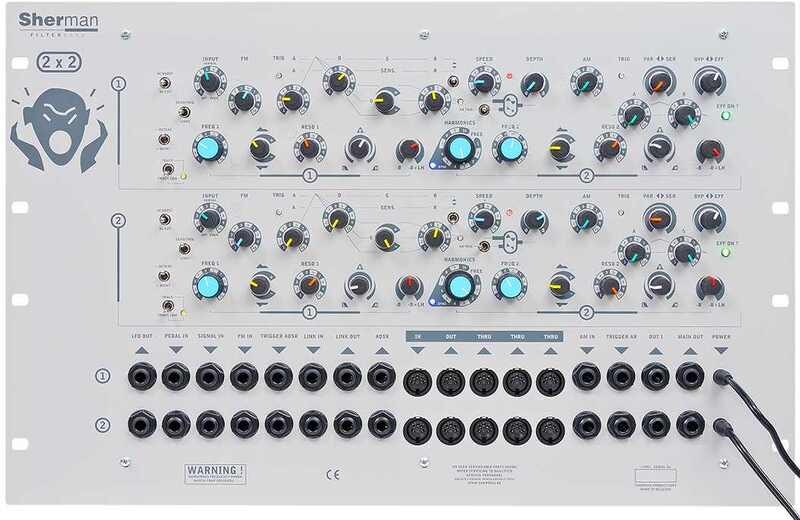

Sherman Filterbank 2 Dual Rack

Tuotenumero 1097692

Dual-Channel Version of Filterbank 2 Rack

Toimitettavissa noin 8-12 arkipäivässä

Maksa heti, laskulla tai osamaksulla - Tallenna kortti ja pankkitili - Helppo ja turvallinen

€1525,00/kpl

Per channel: Two analogue filters, each with controls for frequency, resonance, envelope modulation and continuously adjustable characteristics (low-pass, band-pass, notch, high-pass)
Harmonics switch for coupling the filters at musical intervals
Input section with level control, overdrive circuit and boost/cut switch for high frequencies
Internal noise generator
Selectable pitch tracking of the input signal
Common ADSR envelope for both filters
FM input and AM input with adjustable intensity
VCA (voltage controlled amplifier) with AR envelope
LFO with sine and sawtooth waveforms, wide frequency range and adjustable modulation intensity
Parallel or serial signal flow of both filters continuously adjustable
Wet/dry controller (bypass/effect)
Numerous functions can be controlled via MIDI
MIDI in, out, 3x thru (5-pin DIN)
Inputs for audio signal, pedal, FM, ADSR trigger, AM, AR trigger (6.3 mm jack)
Outputs for main out, filter 1, ADSR, LFO (6.3 mm jack)
Link in/out to link several filter banks (two 6.3 mm jack)
Robust metal housing
Dimensions (W x H x D): 19 x 7 x 55 mm
Weight: 5.1 kg
Includes two external power supply (15V AC)
