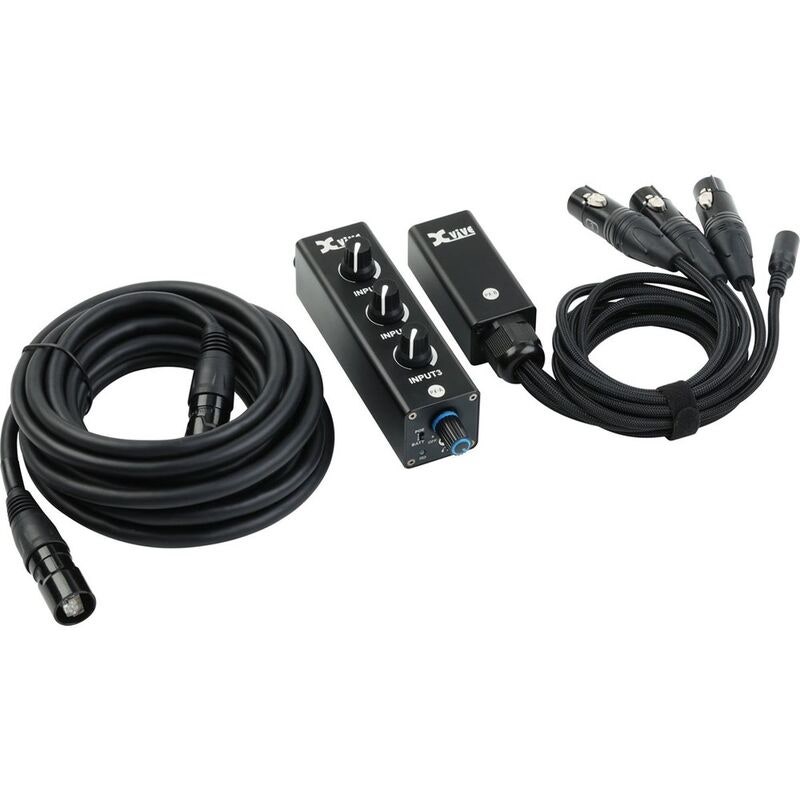

Xvive PX Portable 3-Channel Mixer

Portable 3-Channel In-Ear Monitoring Mixer

Personal monitor control on stage

The Xvive PX is a compact in-ear monitoring system that gives musicians and vocalists direct control over their own monitor mix. Three inputs—microphones, instruments, or submixes—can be adjusted individually via dedicated volume knobs for real-time level control during performances or rehearsals.

Built-in headphone amplifier and master control

The unit includes a headphone amp with a 3.5 mm stereo output. The master volume also functions as the power switch when turned fully counterclockwise.

Efficient audio and power over Cat 5

One Cat 5 cable carries both audio and power, maintaining audio quality over long distances. A locking connector prevents accidental disconnection during use.

Configurable stereo placement

Internal DIP switches allow each channel to be routed to the left, right, or both sides in stereo, making it easier to distinguish different sources in your ears.

Power and expandability

PX can run on two AAA batteries for up to five hours or via a 9V/2A adapter using the included Cat 5 cable. The system is expandable with additional PX units using the PX-H hub, allowing multiple performers to share the same source mix.

Specifications

• Type: Portable 3-channel mixer with headphone amplifier
• Inputs: 3 x XLR (balanced)
• Adapters included: 3 x XLR to ¼" TS (unbalanced)
• Headphone output: 3.5 mm stereo (TRS)
• Output power: 2 x 150 mW @ 16 Ω
• Panning: Left/right/both via DIP switches
• Volume controls: 3 input channels + master volume
• Power: 9V/2A via Cat 5 or 2 x AAA batteries
• Battery life: Up to 5 hours
• Indicator: LED for battery operation
• Housing: Metal chassis with belt clip
• Input (audio + power): Locking Cat 5 connector
• Included items: PX-A, PX-B, EC25 Cat 5 cable (25 ft), 3 XLR–¼" adapters
