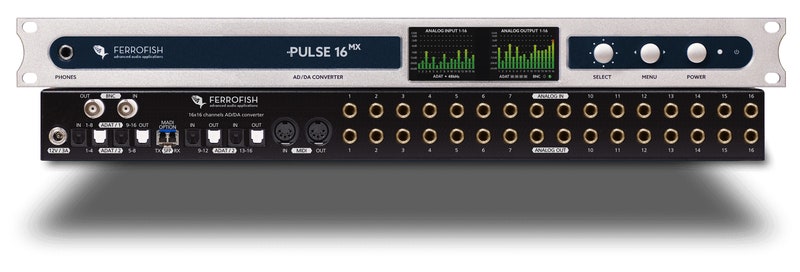

Ferrofish Pulse16 MX +24dBu I/O

The PULSE16 MX offers maximum performance at affordable cost. In addition to the studio-quality 16 x 16 balanced analog inputs and outputs up to 96kHz, the PULSE16 MX offers both ADAT and MADI – probably the most widely used digital audio interfaces available.

• +24dBu I/O Version
• Cirrus Logic 24bit / 96kHz converter
• 2 TFT displays for levels and settings for a complete overview of all levels and settings on the device
• Jacks for quick and easy cabling
• All 32 analog channels can be used at 96 kHz
• Input and output volume of all analog channels switchable in 1dB steps (-8 dBu to +20 dBu)
• Circuit for active jitter reduction
• Fanless
• 16 Analog inputs 6.3 mm jack balanced
• 16 Analog outputs 6.3 mm jack balanced
• 4 ADAT inputs and outputs
• 1 MIDI input and output
• 1 Word clock input and output
• MADI
• Headphone output: 6.3 mm jack
• Power supply connection: A / B, 12 V DC / 3A
• Dimensions: 19", 1 U
