Ibanez AC340CE-OPN Artwood - Thermo Aged

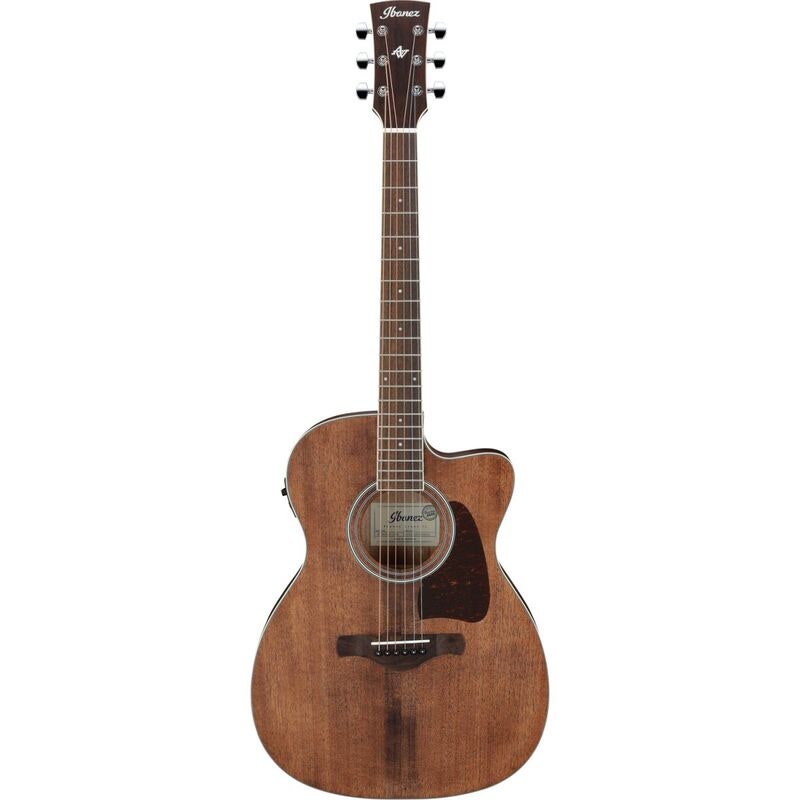

Ibanez AC340CE-OPN – Western Guitar with Pickup, Grand Concert

Design and Construction

The AC340CE-OPN (Open Pore Natural) is a Grand Concert western guitar from the Artwood series that combines traditional guitar construction with modern features. The body is designed for stability and balanced tonal range, with a Thermo-Aged Ovangkol bridge that affects resonance and sustain.

Neck and Fingerboard

The neck is made of Nyatoh with an Ovangkol fingerboard. The scale length is 634 mm, nut width 45 mm, and 14th fret width 56 mm. Neck thickness is 21 mm at the first fret and 22 mm at the seventh fret, with a 400 mm radius.

Body and Materials

The Grand Concert body features a solid okoume top with okoume back and sides. Body length is 492 mm, width 385 mm, and maximum depth 106 mm. Bridge and saddle are Ovangkol, with Ibanez Advantage™ bridge pins for string attachment.

Electronics and Hardware

The guitar is equipped with a Fishman® S-Core™ pickup and Ibanez AEQ-SP2 preamp with built-in tuner. Tuning machines are chrome, and D'Addario® XTAPB1253™ strings are included. Bone saddle included.

Specifications

• Body: Grand Concert, solid okoume top, okoume back and sides
• Neck: Nyatoh
• Fingerboard & bridge: Ovangkol
• Scale: 634 mm
• Nut width: 45 mm
• Width at 14th fret: 56 mm
• Neck thickness at 1st fret: 21 mm
• Neck thickness at 7th fret: 22 mm
• Radius: 400 mm
• Body length: 492 mm
• Body width: 385 mm
• Max body depth: 106 mm
• Pickup: Fishman® S-Core™
• Preamp: Ibanez AEQ-SP2 with tuner
• Bridge pins: Ibanez Advantage™
• Strings: D'Addario® XTAPB1253™
• Tuning machines: Chrome
• Saddle: Thermo-Aged Ovangkol
• Bone saddle included
