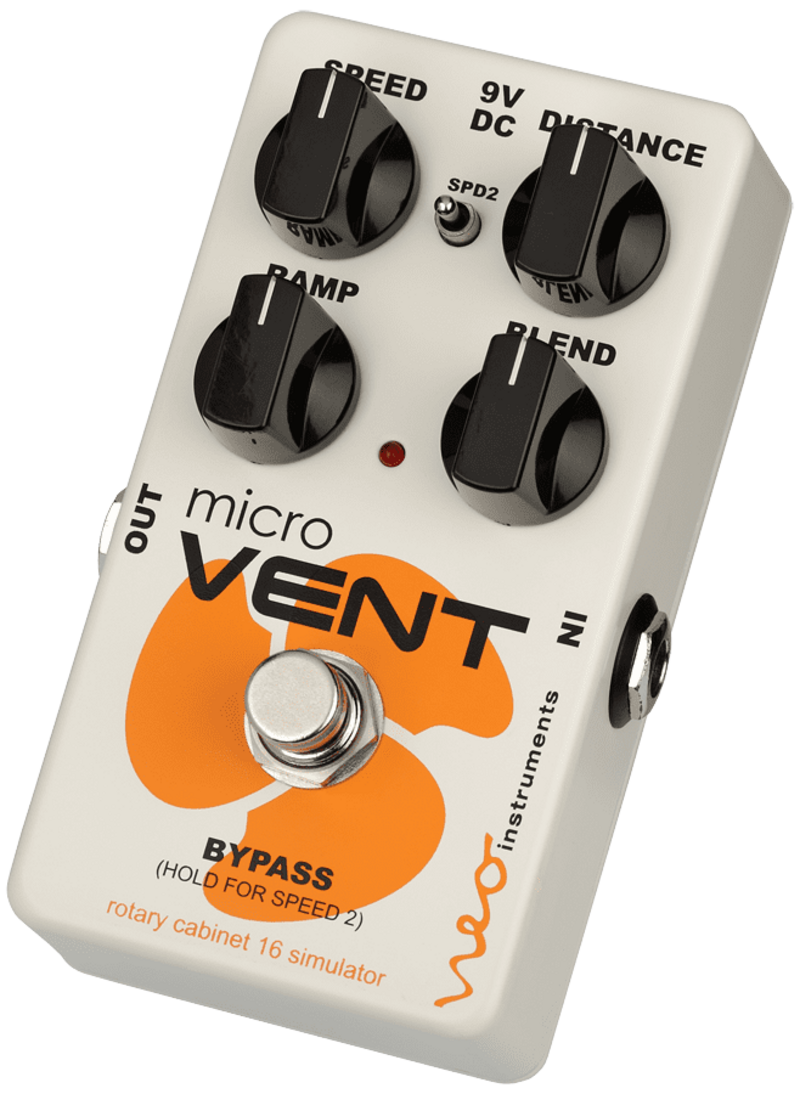

NEO Instruments micro Vent 16

The micro Vent 16 simulates the classic guitar leslie with a 10 inch speaker into a single drum rotor. Yes, we are talking about the vertically suspended magic of the Fender Vibratone. The algorithm simulates capturing the Vibratone with one mic and the distance from the cabinet is variable. Compared to the micro Vent 122, the micro Vent 16 sounds less complex and dominant. It is perfect for rhythm work and for giving lead tones the final touch.

Key Features

• For guitar, bass and keys
• Leslie 122 emulation (micro Vent 122), Vibratone emulation (micro Vent 16)
• Extremely powerful SHARC DSP
• Standard size stompbox enclosure
• 9V DC standard negative polarity
• Mono in / mono out
• Two selectable Speeds (Speed1 continous, Speed2 Slow/Stop/Fast)
• Variable microphone to rotors distance
• Analog Blend
• Silent Footswitch with 5 operating modes for Bypass and Speed select
• True Bypass or Buffered Bypass

Specs

• Signal processing: 32 Bit SHARC DSP
• Analog Digital Conversion: 48khz, 24 Bit
• Digital Analog Conversion: 48khz, 24 Bit
• Noise Level: -90 dBA
• Max Input Level: +5 dBV
• Input Impedance: 0.5MOhm
• Output Impedance: 400 Ohms
• Recommended Load Impedance: 10 KOhms or more
• Weight: 235g / 8 oz
• Dimensions (W x D x H): 113x 65x 47mm
• Current Draw : 180mA
• Connectors: Input, Output, DC In
