KORG DTR-1 Rack Tuner

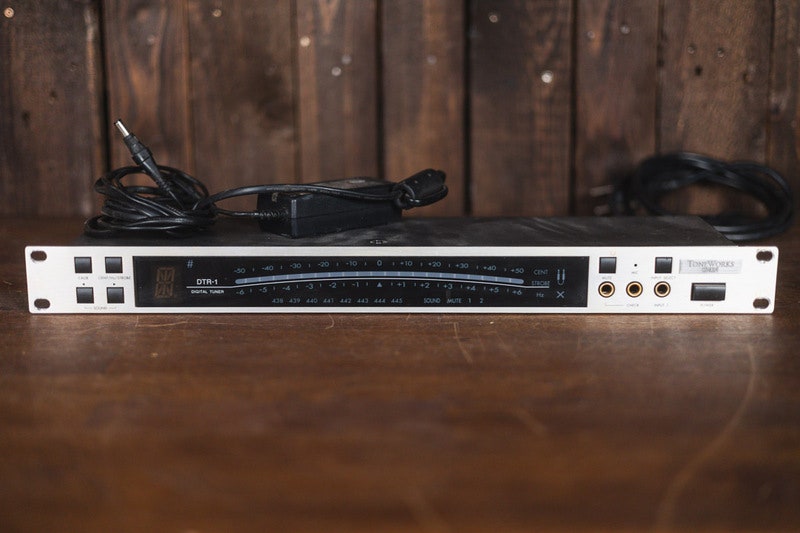

NOTE: Used DTR-1 from KORG. Good condition. See photos for cosmetic details. 6-month warranty.

KORG DTR-1 Rack Tuner – precise and reliable tuning for stage and studio

KORG DTR-1 is a professional rack-mounted tuner that provides fast, silent and accurate tuning for live and studio use. It combines digital precision with classic, straightforward operation and is equipped with three indication modes, automatic and manual calibration, and a built-in mute function for silent tuning.

Overview and features

The DTR-1 includes dual rear inputs, a front microphone and a clear LED display. The meter shows deviation in cents, hertz or strobe, making it suitable for both fine adjustment and quick on-stage checks. The CABLE CHECK feature lets you test instrument cables directly on the unit, while the SOUND mode outputs a reference tone via a separate output.

Construction and components

Built in a robust metal chassis with EIA-standard 1U height (19"). The front panel offers dedicated controls for input selection, mute, calibration and indication mode. The LED meter supports both quick visual reading and higher resolution in the Hz mode. Supplied with insulation washers, bushings and screws for rack mounting.

Connections and integration

Front panel: INPUT 1, CABLE CHECK jack, MUTE jack and microphone. Rear panel: dual INPUT jacks [1]/[2], OUTPUT, SOUND output, MUTE jack for footswitch and INPUT SELECT footswitch jack. The MUTE function enables silent tuning without interrupting the signal flow to a mixer or amplifier.

Control and workflow

The INDICATION MODE key toggles between CENT, Hz and STROBE display. The CALIB key adjusts the reference manually (438–445 Hz) or starts automatic calibration (428–452 Hz). SOUND mode is engaged by pressing the two SOUND keys and outputs a reference tone. The microphone is used by selecting a disconnected input and turning MUTE on.

Technical depth – format, standards and use

Rack format

The DTR-1 follows the 1U format (482 × 44 × 114 mm) for seamless integration into professional racks. Thanks to the three meter modes it suits both precise intonation work and quick on-stage tuning.

Power

Power consumption 7 W. (Mains/PSU not specified in the supplied data.)

In the box

Included accessories

Insulation washers × 4, insulation bushings × 4, screws × 4.

Specifications

• Type: Rack-mounted tuner (12-tone equal temperament)
• Indication modes: CENT, Hz, STROBE
• Measuring range: A0 – C8 (27.5 – 4186 Hz)
• Reference tone: C2 – B4 (65.4 – 493.9 Hz)
• Calibration: 438–445 Hz (1 Hz steps, manual) / 428–452 Hz (automatic)
• Front panel: INPUT 1, CABLE CHECK, MUTE, microphone
• Rear panel: INPUT [1]/[2], OUTPUT, SOUND, MUTE, INPUT SELECT
• Controls: Indication Mode, Calib, Sound (× 2), Input Select, Mute
• Indicators: LED meter, CENT/Hz/Strobe, Note, Calibration, Input Select, Mute, Sound, Cable Check
• Functions: Mute, Sound mode, Cable Check
• Form factor: 19" / 1U – 482 × 44 × 114 mm
• Weight: 1.73 kg
• Power consumption: 7 W
