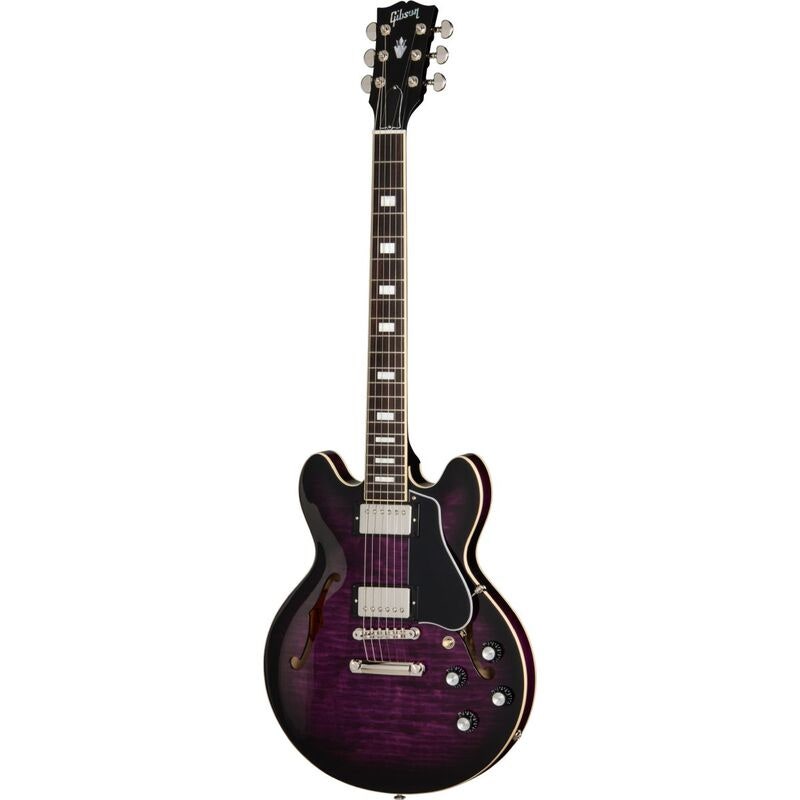

Gibson ES-339 Figured Dark Purple Burst
Tuotenumero 1094617Electric guitar, ES-339 Figured Dark Purple Burst, ’57 Classic humbuckers, Rounded C neck, ABR-1 bridge and hardshell case
Gibson ES-339 Figured Dark Purple Burst – compact semi-hollow electric guitar with classic tone and flamed maple top
Overview and features
The Gibson ES-339 builds on the legendary ES-335 design but in a slightly smaller and lighter form. It retains the semi-hollow construction with a solid maple centerblock for extended sustain and improved feedback resistance. The ES-339 Figured takes this concept further with a beautiful AAA flamed maple top in Dark Purple Burst finish, combining classic looks with modern comfort and versatility.
Construction and materials/components
The body is made of three layers of maple and poplar with a figured maple veneer top, reinforced by a maple centerblock and quarter-sawn spruce bracing. The mahogany neck has a comfortable Rounded C profile, and the rosewood fingerboard features 22 medium jumbo frets and small acrylic block inlays. This combination produces a warm and balanced tone with excellent resonance and clarity.
Electronics and sound
The guitar features a ’57 Classic humbucker in the neck position and a slightly hotter ’57 Classic + in the bridge. Both pickups are perfectly matched and wired by hand with 500 kΩ pots and Orange Drop capacitors. The result is a wide tonal range from smooth jazz to crisp rock tones with exceptional dynamics and response.
Specifications
- Type: Electric guitar, semi-hollow
- Body: 3-ply AAA figured maple/poplar/maple
- Binding: Single-ply cream
- Centerblock: Maple
- Neck: Mahogany, Rounded C profile
- Fingerboard: Rosewood, 22 frets, small acrylic blocks
- Scale length: 24.75″ / 628.65 mm
- Nut width: 43.05 mm (1.69″)
- Nut material: Graph Tech
- Bridge: ABR-1 Tune-O-Matic
- Tailpiece: Aluminum Stop Bar
- Tuners: Grover Rotomatic with Kidney Buttons
- Pickups: ’57 Classic (neck), ’57 Classic + (bridge)
- Controls: 2 volume, 2 tone, hand-wired 500 kΩ pots, Orange Drop capacitors
- Hardware: Nickel
- Finish: Dark Purple Burst nitrocellulose lacquer
- Case: Hardshell
