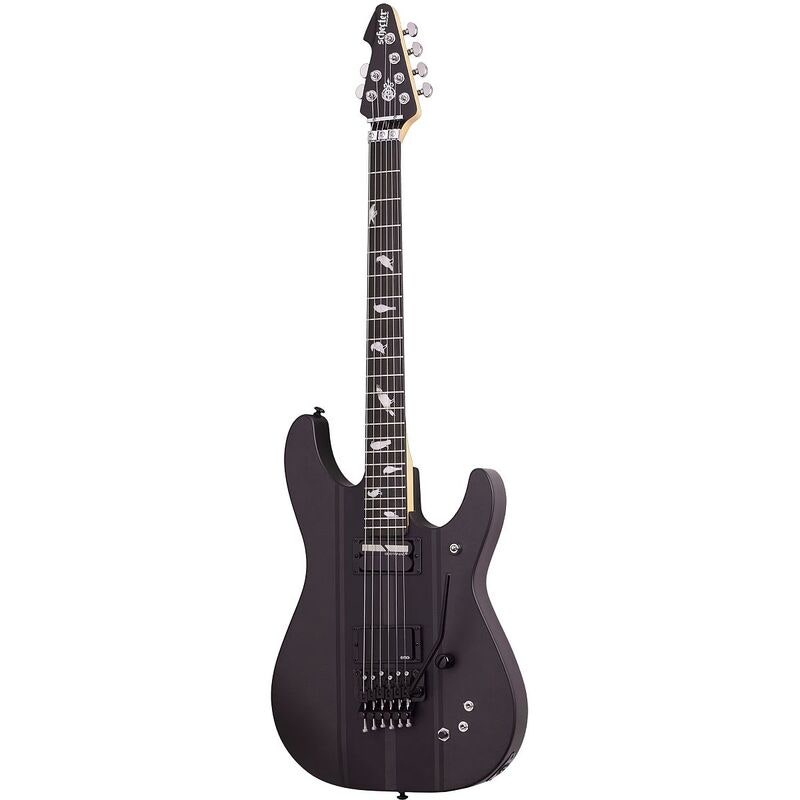

Schecter DJ Ashba, Carbon Grey

Schecter DJ Ashba Carbon Grey – signature model with Sustainiac and Floyd Rose 1500

Schecter DJ Ashba Carbon Grey is a signature model built for stable playability and clear response, featuring a Floyd Rose bridge and active electronics. The combination of bolt-on construction, an alder body, and a Sustainiac®/EMG configuration makes it suitable for both stage and studio use.

Overview

Body and construction

The body is made from alder and features a flat top design with black 1-ply binding. The bolt-on construction supports fast attack and clear note separation. Hardware is finished in black for a cohesive look with the Carbon Grey finish.

Neck and fingerboard

The neck is maple with a Thin “C” profile. The ebony fingerboard has 22 X-Jumbo frets and a 14” radius. The inlays are “Birds on a Wire”. A Floyd Rose 1500 locking nut is used as part of the tremolo system, and a two-way adjustable truss rod supports precise setup.

Pickups and electronics

The guitar is equipped with an EMG 81 in the bridge position and a Sustainiac® in the neck position. The Sustainiac system offers three modes – Fundamental, Mix, and Harmonic – plus a dedicated on/off switch. Pickup selection is handled via a three-way switch, and the model includes a volume control. Active electronics are powered by a double 9 V clip-in battery compartment.

Bridge, tuners, and hardware

The bridge is a Floyd Rose 1500 system with locking nut, designed for tuning stability during intensive tremolo use. Grover Rotomatic 18:1 tuners support reliable tuning performance. Hardware is finished in black.

Specifications

• Model: DJ Ashba
• Color: Carbon Grey (CBG)
• Body: Alder
• Construction: Bolt-on
• Neck: Maple
• Neck profile: Thin “C”
• Fingerboard: Ebony
• Scale length: 25.5” (648 mm)
• Frets: 22 X-Jumbo
• Fingerboard radius: 14” (355 mm)
• Nut: Floyd Rose 1500 Series, 41.3 mm
• Bridge: Floyd Rose 1500 Series
• Bridge pickup: EMG 81
• Neck pickup: Sustainiac®
• Controls: Volume, 3-way switch, Sustainiac on/off, Sustainiac modes
• Tuners: Grover Rotomatic 18:1
• Hardware: Black
• Battery: Double 9 V (clip-in battery compartment)
• Dexterity: Right-handed

FAQ – Schecter DJ Ashba

Which pickups are installed?
It is equipped with an EMG 81 in the bridge position and a Sustainiac® pickup in the neck position.

How does the Sustainiac system work?
The Sustainiac is engaged via an on/off switch and offers three modes: Fundamental, Mix, and Harmonic.

What type of bridge does it use?
It uses a Floyd Rose 1500 bridge with locking nut.

How is the active electronics powered?
Active electronics are powered by a double 9 V clip-in battery compartment.
