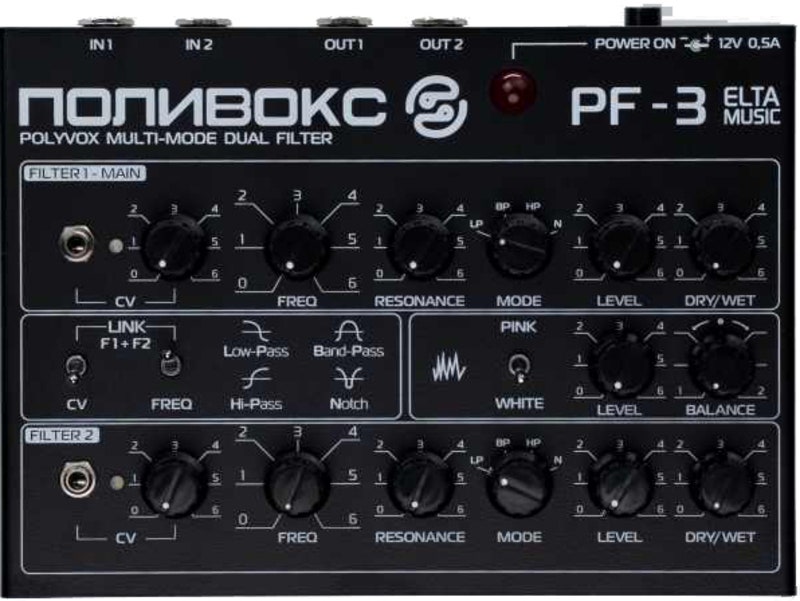

ELTA Music PF3 mk.2 Polivox (Polivoks) Black

The PF-3 mk.2 is a stereo analog filter with four different filter modes onboard: lowpass, bandpass, highpass, and notch. These are available on both channels, it’s a stereo processor. You can link both filters with a switch so you can control two filters and CV simultaneously with a single knob.

Each filter can be controlled with dedicated frequency, resonance, level, and dry/wet controls. You can set the cutoff control either to soft or hard via a switch. There is also a noise generator with two flavors (pink/white) with dedicated level and balance control. The latter allows you to balance the signal per channel.

• FILTER modes - Lowpass, Bandpass, Hi-pass, Notch.
• NOISE generator  - pink, white and channel balancing.
• FILTER 1 and FILTER 2 - CV  controls.
• LINK switches to control two filters and CV at the same time with one slice knob.

​

Technical specifications:

• Input audio signal level:  Max 1.5 V
• Modulation CV input:  - 5 to +5 V or 0 to + 10V
• Power supply: universal mains adapter 100-220V / 12V 1A out
• Filter weight: 0,7kg
• Packed weight: 1 kg
• Dimensions: 175x135x50mm
