Temple Audio Passive Direct Box Module

Temple Audio Passive Direct Box Module – DI Module for Templeboard

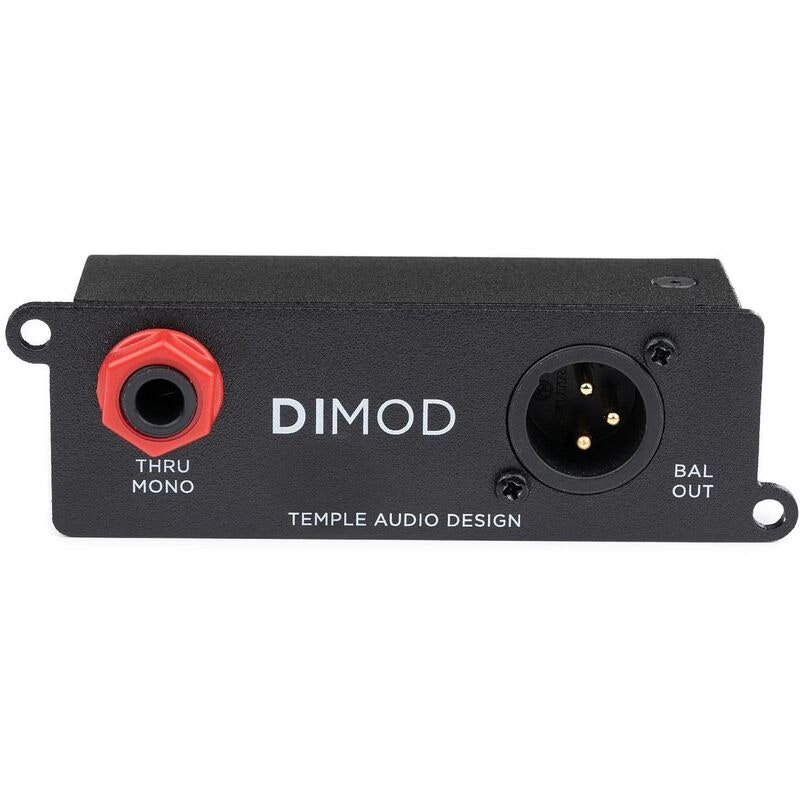

The Temple Audio DI MOD is a passive direct box module designed to mount directly into the Modular End Panel of your Templeboard. Featuring a high-quality custom-wound transformer, it delivers clean and reliable signal transfer – perfect for both stage and studio use.

Premium Sound with Passive Design

The DI MOD is equipped with a custom-wound transformer that provides clear, balanced signal without requiring external power. The passive design ensures dependable operation and easy integration into your pedalboard setup.

Flexible Signal Routing

The module includes one 1/4” input, a 1/4” Thru output, and a balanced XLR output. The front-panel Thru jack can also be used as an input if you want to send a dry DI signal directly to your DAW or front of house while continuing your signal chain through the pedalboard.

A ground lift switch helps eliminate unwanted hum and ground loop noise. For hot signals, the -15 dB pad switch reduces input level and prevents clipping.

Seamless Templeboard Integration

The DI MOD installs effortlessly into the Temple Audio Modular End Panel, providing a clean and professional solution without the need for an external standalone DI box.

Specifications

• Type: Passive DI Module
• Compatibility: Temple Audio Templeboard
• Input: 1 x 1/4”
• Outputs: 1 x 1/4” Thru, 1 x XLR
• Link: 1 x 1/8”
• Features: Ground Lift switch, -15 dB Pad switch
• Height: 1.08”
• Width: 3.78”
• Depth: 2.35”
• Weight: 0.35 lbs
• Manufacturer Part Number: MOD-DI

FAQ

Does the DI MOD require power?
No, it is a fully passive DI module and does not require external power.

Can the Thru jack be used as an input?
Yes, the front Thru jack can also function as an input for sending a dry DI signal to a DAW or front of house.

How do I eliminate hum?
Use the ground lift switch to break ground loops and reduce unwanted noise.

Is it compatible with all pedalboards?
It is specifically designed for Temple Audio Templeboards with a Modular End Panel.
