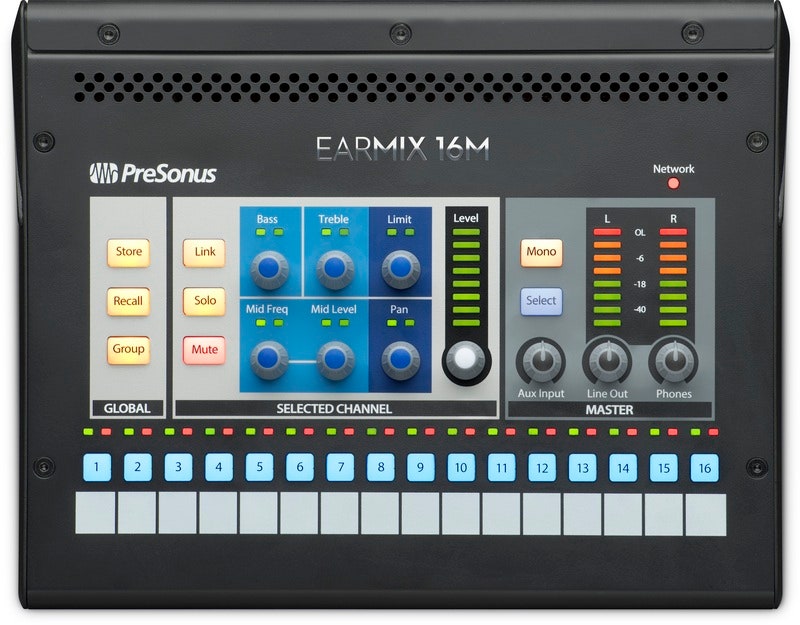

Presonus EarMix 16M

Analog Input/Output

• 1/8-inch stereo aux input
• 2 Balanced ¼-inch TRS line outputs
• ¼-inch TRS stereo headphone output with loud, clear headphone amp that can drive low-impedance in-ear monitors

Meters, Controls, and Processing

• 3-band EQ with sweepable mid frequency on all channels and main mix
• Limiter on all channels and main mix
• Stereo channel linking
• Channel grouping
• Solo and Mute
• Mix scene Store and Recall; store up to 16 mix scenes locally
• 16 Signal present and clip LEDs (one for each input)
• 8-segment stereo output meter
• Channel Level rotary control with 8-segment level indicator
• Aux Input level control
• Independent Monitor (line out) and Phones level controls
• Routing setup from StudioLive Series III consoles and UC Surface

Digital

• 16 mono channels of input via AVB networking
• 2 AVB Ethernet ports
• 24 bit, up to 48 kHz operation

Power

• External 24 VDC power supply (included)
• Support for PoE power

Physical

• Mic stand mounting option (sold separately)
