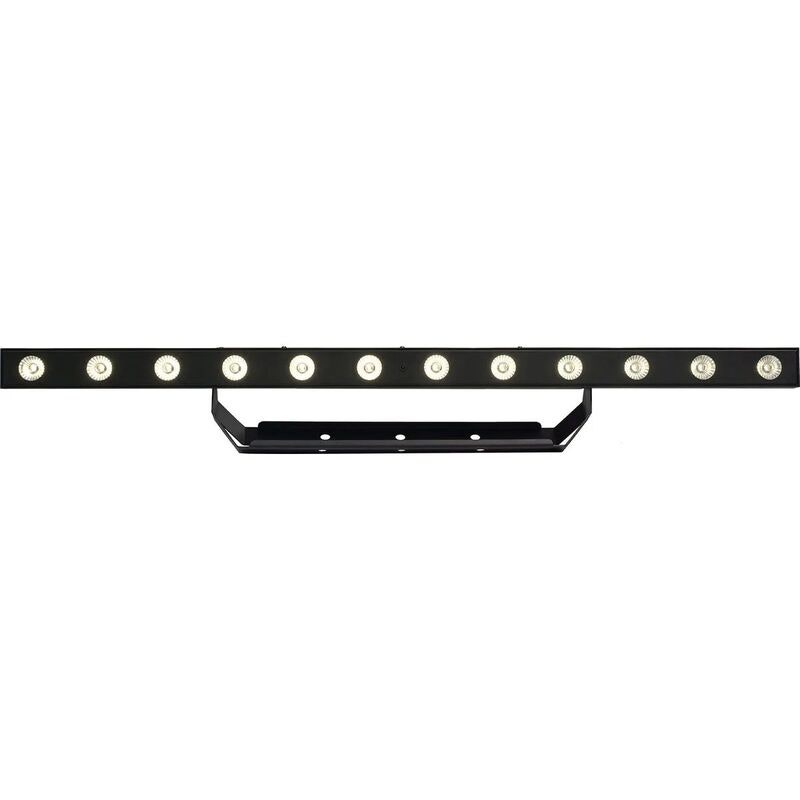

Algam Lighting BARWASH36 CWWW

Algam Lighting BARWASH36 CWWW – 1-metre LED wash bar with adjustable warm and cool white light

Algam Lighting BARWASH36 CWWW is a professional 1-metre LED wash bar fitted with 12 x 3 W CW/WW LEDs for smooth, adjustable warm and cool white lighting. With a 40° beam angle, three individually controllable segments and several DMX modes, it is well suited to stage, event, exhibition, installation and architectural lighting.

The fixture can deliver everything from neutral functional lighting to warmer ambient illumination. DMX control, Auto mode, static operation and sound activation make BARWASH36 CWWW flexible enough for both standalone use and integration into larger lighting systems.

Overview and features

12 x 3 W CW/WW LEDs

BARWASH36 CWWW uses twelve 3 W LEDs with both Cool White and Warm White output. With a total LED power of 36 W, the fixture allows the colour temperature to be adjusted from warmer to cooler white depending on the application.

Three individually controllable segments

The LED bar is divided into three controllable segments, providing greater flexibility than a conventional fixture where the entire output always behaves identically. The segments can be addressed through DMX for more varied lighting effects and transitions.

40° beam angle for even wash lighting

A 40° beam angle provides relatively wide and even coverage, making BARWASH36 CWWW suitable for washing stages, walls, exhibition stands and other surfaces where uniform illumination is important.

DMX with 2, 4 or 10 channels

The fixture can operate in 2-, 4- or 10-channel DMX modes, allowing the user to choose between straightforward control and more detailed programming depending on the lighting console and application.

Auto, static and sound-activated modes

In addition to DMX operation, BARWASH36 CWWW offers Auto, static and sound-activated modes, allowing it to be used without an external DMX controller.

Flexible mounting

The dual mounting bracket allows the fixture to be positioned on the floor or mounted to a stand, truss or other suitable structure. A safety sling is included for secure installation.

DMX and power linking

3-pin XLR DMX input and output simplify the connection of multiple fixtures, while IEC power input and output make it easier to link power between units.

Passive cooling

BARWASH36 CWWW uses passive cooling and therefore requires no fan. This is particularly useful in theatres, galleries, conference spaces and other environments where low operating noise is important.

For stage, events and fixed installations

The fixture is suitable for concerts, shows, corporate events, trade fairs, museums, galleries, bars, clubs, auditoriums and commercial installations. Adjustable warm and cool white output makes it especially useful where colour temperature needs to be adapted to the environment, display or presentation.

Specifications

• Product Type: LED wash bar
• Light Sources: 12 x 3 W CW/WW LEDs
• Total LED Power: 36 W
• Colour Temperature: Adjustable warm white / cool white
• Segments: 3 individually controllable segments
• Beam Angle: 40°
• Modes: Auto, static, sound activated, DMX
• DMX Channels: 2, 4 or 10
• DMX I/O: 3-pin XLR
• Power I/O: IEC
• Display: Digital display with 4 control buttons
• Cooling: Passive
• Chassis: Steel
• Power Supply: 100–240 V, 50/60 Hz
• Power Consumption: 36 W
• Protection Rating: IP20, indoor use only
• Dimensions: 1000 x 51 x 157 mm
• Weight: 2.8 kg
• Included: Power cable, Velcro cable tie, dual mounting bracket, safety sling and IR remote control
