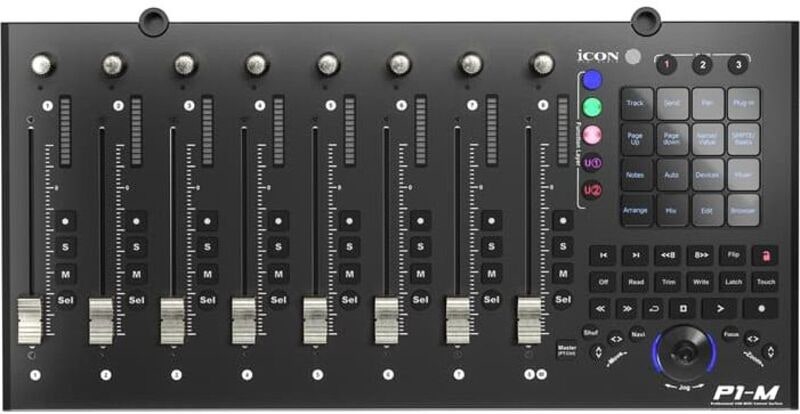

iCon P1-M

Experience ultimate control with the P1-M DAW controller, designed to revolutionize your productivity and accelerate project completion. This powerful device puts tactile control at your fingertips, streamlining your workflow for a faster and more efficient creative process. Discover the remarkable features that make the P1-M the perfect match for your audio adventures.



• 8x touch-sensitive motorized faders with 12-bit resolution
• Programmable 4-inch,16 panel digital touchscreen display showing DAW functions with 5 color modes – a potential total of 80 displayable and actionable functions
• Organize DAW functions in the 16 panel touchscreen easily via ‘drag and drop’ in the iMAPTM
• Connect up to 3 DAWs at one time via the DAW select buttons
• Extremely hard wearing, durable and versatile
• Precise, clear and attractive LED meters
• Smooth-action jog wheel shuttle for fast search, scrub and control
• 8 smooth action dual-function encoder knobs (Rotate and Enter)
• Illuminated function buttons for ‘Read’, ‘Write’, ‘Touch’, ‘Latch’, ‘Trim’; and ‘Off’ – activated/deactivated as required by the DAW
• Illuminated buttons for channel control including Mute, Solo and Record
• 6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast Forward and Loop
• Dedicated ‘Flip’ and ‘Master’ buttons for fader flipping and access to the master channel (Channel 8 becomes the Master channel)
• Illuminated "Zoom" button with 2 directional keys (Left/Right & Up/Down) – used in combination with the jog wheel
• Illuminated ‘Focus’ button which allows the user to "focus" in and adjust plug-in, EQ parameters etc. via the smooth-action jog wheel
• 2 illuminated "Track" buttons for selecting individual channels
• 2 illuminated "Bank" buttons for shifting 8-channels at a time
• Supports Universal Mackie Control and HUI protocols for seamless integration with compatible music production software
• Supports Ability, Audition, Ableton Live, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer, FL Studio, Mixbus 32C, Pro Tools, Logic Pro, Luna, Reaper, Reason, Samplitude, Studio One and Tracktion Waveform
• iMapTM software included
• USB C high-speed connectivity
• Firmware upgrade available via USB C connection and iMap TM software
• User A & User B 1/4 inch inputs for connecting footswitch pedals
• Class-compliant with MacOS, Apple Intel and Apple Silicone processors, Windows 10 and Windows 11
• Superior build quality and robust metal casing with Kensington lock port
• Optional D-4T display unit with OLED display showing channel name, control values, channel colors etc., (DAW dependent) and timecode displayed in SMPTE or beat clock (bars.beats.ticks)
• Expandable with the P1-X extender unit (8 channels per P1-X)
• Optional D4 display unit for the P1-X



Tech Specs:

Connector	To computer USB connector
Power supply	12V/2. 5A DC
Current consumption	2. 0A or less
Weight	1.917 kg (4.23lb)
Dimensions	405 (L) x 203,7 (W) x 60,5 (H) mm
