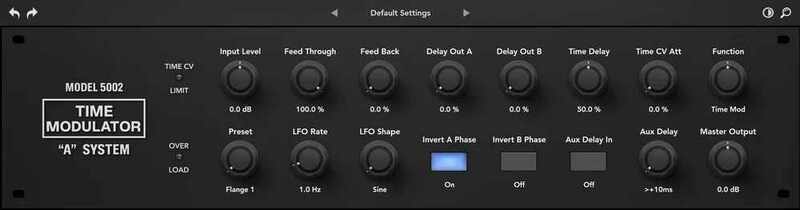

Rave Generation Time Modulator

KEY FEATURES

Authentic dual BBD architecture
• Reticon SAD1024 BBD simulation with proper 1024-stage characteristics
• ADL-70-D Dynamic Module: Continuously variable 1–25ms primary delay
• ADL-60-S Static Module: Auxiliary delay with stable timing for complex effects
• Voltage-controlled clock generation with anti-aliasing and reconstruction

Modified dbx 303 compander system
• St. Croix's custom modifications optimized for outboard gear applications
• 95dB signal-to-noise ratio with sophisticated encode/decode processing
• Linked compressor/expander operation around delay modules
• Custom VCA filters and RMS detector pre-emphasis circuits

Complete LFO waveform set
• Six authentic waveforms: Sine, Square, Saw, Triangle, SSC, Random
• 0.1–10Hz frequency range with musical voltage control characteristics
• Function mode-specific behavior and waveform shaping
• Dual-phase output for authentic stereo delay modulation

6-Preset system
• Flange presets 1–3: Matched delay ratios inspired by classic flanging configurations
• Delay presets 1–3: Extended delay times for echo and doubling effects
• Carefully tuned delay ranges and time relationships
• Seamless preset switching with parameter interpolation

Three function modes
• Audio Delay: Clean delay mode with extended timing for echo effects
• Time Mod: Primary flanging/modulation mode with complex feedback
• Phase Shift: Phase-based effects with quadrature LFO relationships

Authentic LED monitoring
• Time CV Limit LED: Indicates when CV modulation hits limiting rails
• Overload LED: Monitors input level after Input Level control
