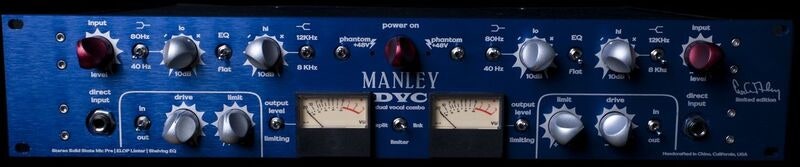

B Manley Dual Vocal Combo

Specs:

• Frequency Response: ±0 dB 10 Hz to 20 KHz

• <0.05% THD @ 1kHz

• S/N Ratio: 103dB

• Gain: 38 dB to 53 dB (adjustable)

• Mic Input Impedance: 2400 Ohm

• Mic Input XLR: BALANCED TRANSFORMER COUPLED

• DIRECT Input Impedance: 150K UNBALANCED 1/4"

• Output Impedance: 11 Ohm XLR; 6 Ohm 1/4" output

• Maximum Output: +31dBv (75 volts peak-to-peak)

• Input Sensitivity @ 1KHz (45 dB gain setting): 55 mV

Electro-Optical Limiter Section

• ALL-DISCRETE audio path

• Balanced XLR inputs & outputs

• Unbalanced 1/4" inputs & outputs

• Silent conductive plastic INPUT attenuators

• GAIN REDUCTION controls

• BYPASS switches

• Sifam VU METERS

• Meters switch to read OUTPUT or REDUCTION

• STEREO LINK switch

• <0.04% THD @1kHz

• Gain: -2 dB to 12 dB (adjustable)
