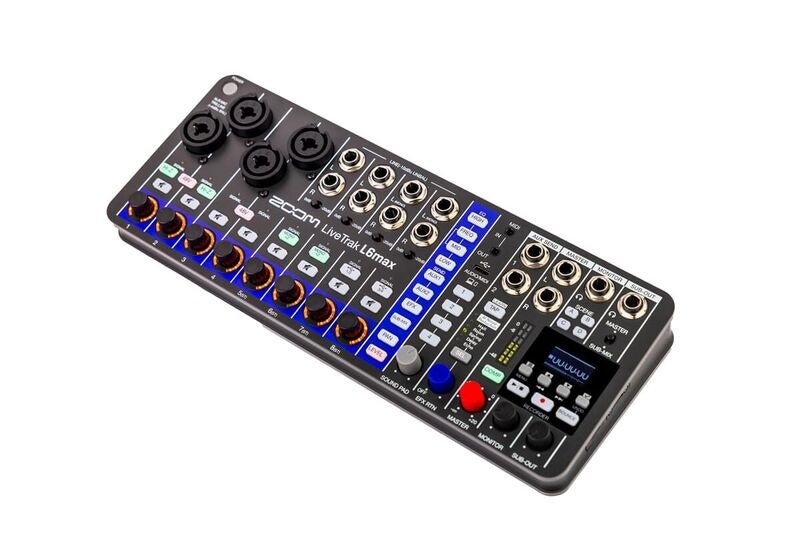

ZOOM Livetrak L6max

Digital Mixer and Multitrack Recorder

The LiveTrak L6max combines mixer functions with a built-in multitrack recorder. With 12 channels, two headphone outputs, and a customizable submix, it is suited for bands, duos, and solo performers. Its compact design makes it practical for rehearsals, live performances, and podcasts.

Recording and Storage

The unit records up to 12 individual tracks plus a stereo mix in 32-bit float directly to SD cards up to 2 TB. The bounce track function frees additional channels for more layers, while all tracks are saved for further mixing. Projects can be stored and recalled at any time.

Connections and Functions

Four combo inputs, including two with Hi-Z, and eight line inputs provide versatile connection options. Channels 5–8 feature a PAD switch (-20 dB) for signals from sources such as synthesizers or Eurorack modules. Two AUX sends with pre/post-fader options enable flexible routing for effects and monitor feeds.

Processing and Effects

Each channel is equipped with a 3-band EQ and built-in effects including reverb, delay, and echo. A dedicated compressor on the master track offers additional control over the overall sound.

AI-Based Noise Reduction

AI Noise Reduction minimizes hum, hiss, and background noise while preserving detail in voices and instruments.

Control and Integration

A high-contrast OLED display provides a clear overview of settings and projects. The unit also works as a 32-bit float USB audio interface (12 in/4 out) for computers, iOS, or Android devices, while recording simultaneously to SD card. MIDI I/O and USB-MIDI allow integration with external instruments and software.

Specifications

• Sound pads for triggering jingles, samples, or effects with MIDI sync option
• Scene memory for storing up to four different mixes
• Free L6 Editor app for Mac and Windows for pad, effect, and MIDI customization
• Power supply via AA batteries, USB bus, or mobile battery pack
• Optional Eurorack mounting accessories
• 12-channel digital mixer and multitrack recorder
• 4 combo inputs (2 with Hi-Z) + 8 line inputs
• 2 headphone outputs and customizable submix
• 3-band EQ on each channel
• Built-in effects: reverb, delay, echo
• Master track compressor
• AI-based noise reduction
• 32-bit float recording, up to 12 tracks + stereo mix
• Direct recording to SD cards up to 2 TB
• Bounce track function for additional layers
• USB audio interface 12 in/4 out (32-bit float) for computer, iOS, Android
• MIDI I/O and USB-MIDI
• 2 AUX sends with pre/post-fader options
• OLED display for navigation and settings
• Power via AA batteries, USB, or mobile battery pack
• Eurorack compatible with accessories
