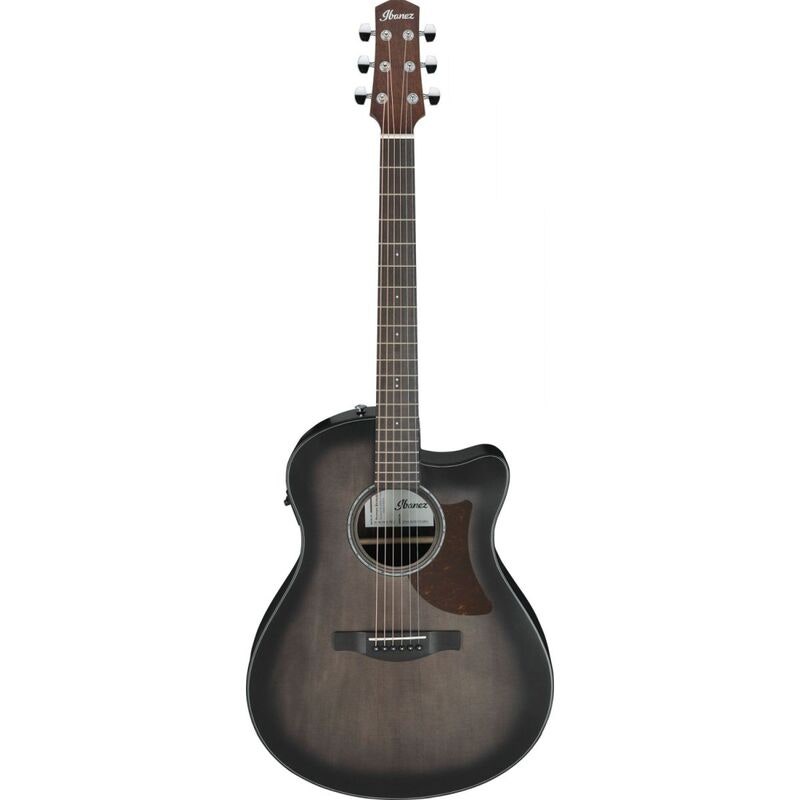

Ibanez AAM70CE-TBN Advanced Auditorium - Transparent Charcoal Burst

Acoustic guitar with pickup, Advanced Auditorium

The Ibanez AAM70CE-TBN is an acoustic guitar with cutaway and pickup, part of the Advanced Auditorium series. It is designed for balanced tone and playability, suitable for both studio and stage use. Crafted from carefully selected tonewoods, it combines precision construction with focus on tone and functionality.

Tone and construction

The body features a solid Sitka spruce top with Macassar ebony back and sides, providing a rich tonal range and long sustain. The specially designed X-M bracing enhances sound projection and overall tonal balance.

Sound port

The AAM70CE includes Ibanez’s A.I.R. Port (Acoustic-Information-Response) system, positioned toward the player for improved monitoring. Angled wooden blocks guide the sound through the port, offering clear feedback without affecting the natural acoustic tone.

Neck and playability

The Okoume neck with low oval grip and Purpleheart fingerboard provides comfort and control. With a 43 mm nut width and 634 mm scale, it offers smooth playability for both fingerpicking and strumming styles.

Electronics and outputs

Equipped with a compact AEQ-TP2 preamp featuring an onboard tuner and an Ibanez T-bar undersaddle pickup. Balanced XLR and 1/4’’ outputs deliver a clear, natural, and noise-free amplified sound.

Body and design

The Advanced Auditorium body with cutaway and rounded edges ensures ergonomic playability. Chrome die-cast tuners (18:1 ratio) and Ibanez Advantage bridge pins provide tuning stability. Strung with D’Addario Coated Phosphor Bronze strings (012–053). Compatible gigbag: IAB540-BK.

Specifications

Body and top

• Advanced Auditorium body with cutaway
• Solid Sitka spruce top
• Macassar ebony back and sides
• X-M bracing
• Rounded edge binding
• A.I.R. Port
• Abalone rosette with black/white multi pattern

Neck and fingerboard

• Low oval grip Okoume neck
• Scale length: 634 mm
• Purpleheart fingerboard and bridge
• Nut width: 43 mm
• Width at 14th fret: 55 mm
• Thickness at 1st fret: 21 mm
• Thickness at 7th fret: 22 mm
• Radius: 400 mmR

Electronics

• Ibanez T-bar undersaddle pickup
• AEQ-TP2 preamp with onboard tuner
• Balanced XLR & 1/4’’ outputs

Bridge and hardware

• Purpleheart bridge
• Chrome die-cast tuners (18:1 gear ratio)
• Ibanez Advantage bridge pins
• D’Addario Coated Phosphor Bronze strings 012–053

Dimensions

• Body length: 1080 mm
• Body width: 390 mm
• Depth: 90–106 mm
