Ibanez AE140-WKH Western gitarr, AE Performer - Weathered Black Open Pore

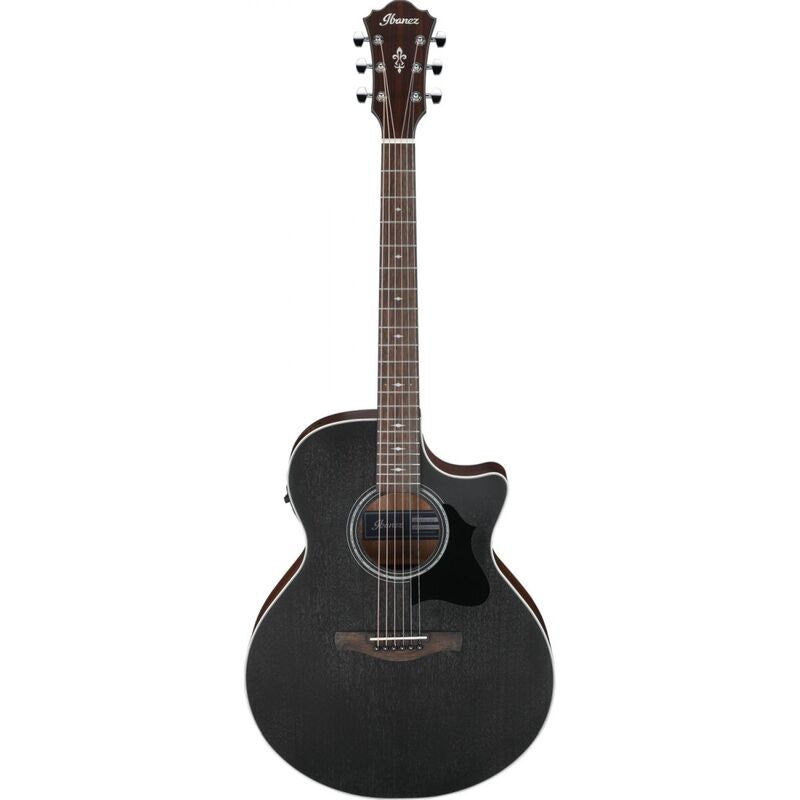

Ibanez AE140-WKH

The AE140-WKH is part of the AE series and features a body with modern design elements for playability and balanced tone. The body is made entirely of mahogany with a solid okoume top, providing a woody sound with smooth response for fingerstyle playing and clear midrange projection. The combination of Scalloped X Bracing and Tone Projection Back Bracing delivers versatile tonal character and rich sustain. Fretboard inlays and an abalone rosette around the soundhole add to the guitar’s visual design.

Neck and Playability

The neck is made of Nyatoh with a Comfort Grip profile and has a laurel fretboard and bridge. The 43 mm nut width provides extra space between strings for comfortable playing. The neck has a 400 mm radius and a 634 mm scale length.

Electronics and Features

The guitar is equipped with an Ibanez T-bar undersaddle pickup and AEQ-TP2 preamp with built-in tuner. The system includes balanced XLR and 1/4" outputs for flexible stage or studio use. The A.I.R. (Acoustic Information Response) port on the side of the body directs sound toward the player, improving monitoring without affecting the natural tone.

Dimensions and Accessories

The body measures 508 mm in length, 410 mm in width, and 95–115 mm in depth. The guitar comes with D’Addario XTAPB1253 strings, Ibanez Advantage bridge pins, and fits FS40DA case and IAB540-BK gigbag.

Specifications

• Body: AE shape, mahogany, solid okoume top
• Neck: Nyatoh, Comfort Grip profile
• Fretboard & bridge: Laurel
• Nut width: 43 mm
• Nut & saddle: Compensated bone
• Bracing: X-M (Scalloped X + Tone Projection Back)
• Pickup: Ibanez T-bar undersaddle
• Preamp: AEQ-TP2 with tuner
• Outputs: Balanced XLR & 1/4"
• Strings: D’Addario XTAPB1253
• Tuners: Chrome die-cast
• A.I.R. port
• Neck radius: 400 mm
• Scale length: 634 mm
• Body dimensions: Length 508 mm, width 410 mm, depth 95–115 mm
• Finish: Weathered Black Open Pore
• Case: FS40DA, Gigbag: IAB540-BK (not included)
