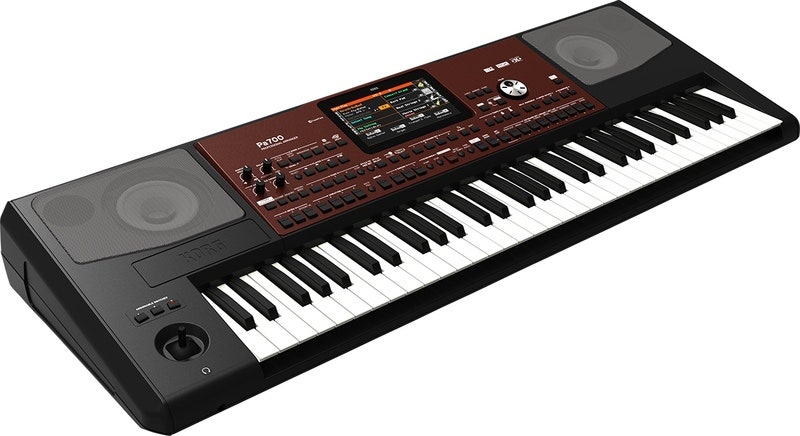

KORG PA700 Arranger Keyboard

Korg PA700 jatkaa siitä, mihin PA600 jäi. Konsepti on tuttu: kompakti ja virtaviivainen ulkokuori ja alan muhkein soundi. Kaksi 25W vahvistinta ajaa kaiuttimia ja uudelleen suunniteltu bassorefleksi takaavat ensiluokkaisen äänentoiston. PA700:n etupaneelia on virtaviivaistettu ja kontrollit on sijoitettu intuitiivisesti livetilanteita silmällä pitäen. Uudella kapasitiivisella TouchView näytöllä uusi graafinen käyttöjärjestelmä pääsee oikeuksiinsa entistä helppolukuisempana ja -käyttöisempänä vaativissakin olosuhteissa. Niin ikään uusittu etsimistoiminto helpottaa tyylien, settien ja songbookkien löytämistä ja niitä voi nyt soittaa suoraan USB:lta ilman laitteen muistiin lataamista.

Korgin EDS-X synteesiengine on PA700:n ytimessä 1700 presetin voimin. Soundeja löytyy klassisista moderneihin kosketinsoittimiin, bändi- ja orkesterisoittimiin sekä elektronisiin ja akustisiin instrumentteihin teknosta folkkiin. Mukana on kaksi monikerroksista stereoflyygeliä (mallinnetulla vaimenninpedaalisoundilla ja runkoresonansseilla) sekä kiitetyillä sähköpianosoundeilla Korg SV-1 Stage Pianosta. Urkumallinnuksessa on koskettimen paino- ja irroitussoundi, vuoto- ja rotarykaiutinmallinnus. Lisäksi PA700ssa on uusia puhallininstrumentteja, jousia ja bassoja – jopa akustisia ja sähkökitaroita.

Rumpukittejä on tarjolla 106, tyylejä 370.

Specifications:

Keyboard: 61 keys (C2 – C7) with velocity

System: Upgradable operating system, Multitasking, Load while play

Sound Generator: EDS-X (Enhanced Definition Synthesis – eXpanded), Filters with resonance, 3-band EQ on each Sound

Polyphony: 128 voices, 128 oscillators

Effects: Accompaniment/Song: 2 insert effects; 2 master effects (148 types). Keyboard Sounds: 1 insert effect; 2 master effects (148 types). Final mastering effects: Limiter, Master EQ. Voice Processor: 5 FX, 28 Factory, 64 User Presets. Guitar Processor: 3 FX, 45 Factory, 64 User Presets

Sounds / Drum Kits: Factory: Pa700: More than 1,700 Factory Sounds including a multilayer Stereo Piano with damper and body resonance, GM/XG sound sets and 106 Drum Kits; Pa700 ORIENTAL: See the User Manual (TBD). User: 512 Sounds, 256 Drum Kits. Digital Drawbars: 9 footages, percussion, key on/off, leakage, rotary speaker effect. DNC (Defined Nuance Control) Technology, Natural Ambience Drums. Full Sounds/Drum Kits editing

Sampling : 128 MB compressed (equivalent to 256 MB linear data);Loads KORG, WAV, AIFF and SoundFont™ formats: Saves KORG, WAV and AIFF formats. Full Edit, Time Slice

Styles: Factory: Pa700: More than 370 Factory Styles, freely reconfigurable sets: Pa700 ORIENTAL: See the User Manual (TBD). User: 1,152 locations, including User and Direct banks. Eight Accompaniment tracks, 4 Keyboard Sets, 4 Pads per Style; Style Settings (Sounds and Arranger parameters) on each Style. Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table). Style/Pad Record with Step Record, Track and Event Edit. Style Creator Bot (MIDI Song to Style Converter). Style controls: 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start, Synchro Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Style to Keyboard Set Mode

Chord Sequencer: Chord Sequence recorder and player in Style Play mode. Chord Sequences can be saved to Style and SongBook Entries. Edit functions: Delete, Copy from Style/SongBook, Import/Export from/to SMF

Keyboard Set Library: Memorize Keyboard Sound settings. Factory: Pa700: More than 290 Factory Keyboard Sets, freely reconfigurable. Pa700 ORIENTAL: See the User Manual (TBD). User: 864 locations, including User and Direct banks, ‘My Setting’ special Keyboard Set

KAOSS FX : Automatic MIDI FX generator. More than 65 Factory Presets

Song Play: Supported formats: MID, KAR, MP3+Lyrics, MP3+G. Select, Start/Stop, Home, Rewind and Fast Forward controls. Lyrics, Score, and Chord data can be displayed on screen, or on an external video monitor. Markers with Add, Delete, Edit and Loop functions. Jukebox function

MP3 Player / Recorder: MP3 Player and Recorder. Transpose (+6/-5 semitones), Tempo change (±30%). Vocal Remover. Records MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Microphone, Guitar and Effects

Sequencer: Quick Record (Backing Sequence), Multitrack and Step Record functions. Full-featured sequencer, 16 tracks, Up to 200,000 events, SMF (MID) native format

SongBook: Fully programmable music database, based on Styles, MIDI Songs (MID and KAR files), MP3 Songs, with automatic selection of Style Play and Song Play modes. User definable Set Lists, with Entries selectable from the control panel. Filtering and sorting options

Compatibility: Pa-Series models: Styles, Performances, Programs/Sounds, Songs, SongBook Entries, Pads, ‘i-Series’ models: Styles

Pads: Four Assignable Pads + Stop buttons, Pad Record function

General Controls: Master Volume, Fade In/Out, Keyboard-Acc/Song Balance, Ensemble, Octave Transpose, Master Transpose, Joystick, 2 Assignable Knobs, 3 Assignable Switches, Tempo +/-, Tempo Lock; Metronome On/Off, Dial, Search, Shift Split, Record

Scale Controls: Pa700: Virtual Quarter Tone SubScale Keypad, 4 x Scale Presets, Pa700 ORIENTAL: Physical Quarter Tone SubScale Keypad, 4 x Scale Presets

Control Inputs: Damper pedal (supports half-pedaling with the optional DS-1H pedal), Assignable pedal/switch

Audio Inputs: Line (Left/Right): 1/4” jacks, +20dBm, 12k Ohm. Mic/Guitar (Left): 1/4” jack, with Gain control (0 — +40dB). 12k ohm (Mic) / 500k ohm (Guitar)

Audio Outputs: Left/Right, 1/4” jack, +21dBm, 0.003% THD+N@+18dBm. Headphone output (1/4” jack), 16-200 Ohms (50 Ohms suggested)

Speaker System: Amplification: 2 x 25W, Speakers: 2 x Dual Cone Speakers in Bass Reflex Box

MIDI IN, OUT standard MIDI connectors. USB to MIDI using the USB ports. HOST: memory and controllers, DEVICE: personal computers. Eight user definable MIDI Setups

USB: Type A (Host), Type B (Device). 2.0 Hgh-Speed connections (480 Mbit/s). Low-Speed (1.5 Mbit/s) and Full-Speed (12 Mbit/s) devices can only be connected through a High-Speed USB hub.

Storage: Internal memory: 960 MB. USB external drives (drive not included). microSD card (not included); rear panel slot with plastic cover

Display : 7” Wide capacitive color TouchView™ TFT display

Video Out: HDMI

Clock: Internal System Clock

Power Consumption: 100-240 Volts, 50/60 Hz, 25 Watt normal / < 0.3 Watt in standby

Dimensions (W x D x H): 1030 x 378.3 x 132 mm/40.55" x 14.89" x 5.2" (without music stand; height with music rest: 355.8 mm / 14”)

Weight: Pa700: 9.9 kg/21.82 lbs, Pa700 ORIENTAL: 9.95 kg/21.93 lbs

Included Items: AC Power Cable, Music Stand, Quick Guide manual

Accessories: EXP-2 Foot Controller, XVP-20 Expression/Volume Pedal. DS-1H Damper Pedal (supports half-pedal)
