Since its launch in 1994, the XVP-10 expression/volume pedal
has become a long-selling success,
and now it's available in an updated rendition. With its tough aluminum body and stylish design, it delivers stability and more accurate performance in a compact form.
Intricate features have also been added, including the use of
rubber to allow enhanced grip, and
improved gears that provide smoother operation
and very fine resolution for more accurate
performance and the best control available in an expression/volume pedal. A new black anodized
finish on the exterior emanates a sense of high quality.

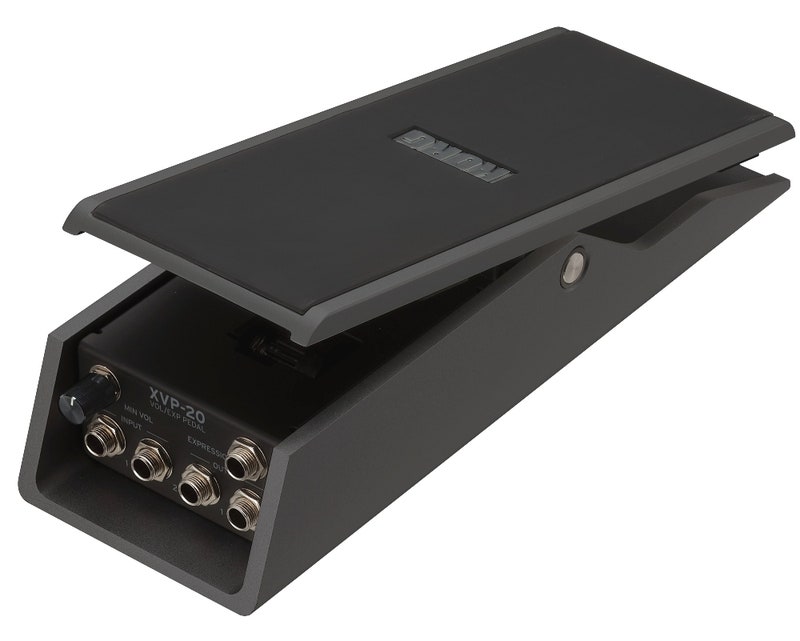

The XVP-20 gives you all the functionality you want from an expression/volume pedal. It provides two sets of input/output as well as one expression jack. While the output and expression jacks are available on the previous model, the XVP-20 delivers even better operability.
The augmented compact body design improves portability, and the sturdy aluminum body ensures a sense of stability underfoot. The black anodized exterior finish is an ideal match for KORG's flagship KRONOS workstation.
Rubber is used on the top surface of the footboard and on the bottom of the body, providing better grip strength and improved stability. The pedal uses a durable gear mechanism for trouble-free operation. Additionally, the gears now have more teeth, delivering an extremely smooth operation.
The minimum volume knob lets you adjust the volume range that can be controlled by the pedal. The knob has been moved from its previous location under the footboard to the back of the body, making it easier to control. A torque adjustment screw is also provided, allowing easy adjusting to the operating torque (weight) of the footboard to suit your preference.
Input impedance: 50K–100K ohms
Input Jacks: INPUT 1, 2 (monaural phone jack)
Output Jacks: OUTPUT 1, 2 (monaural phone jack), EXPRESSION PEDAL (stereo phone jack)
Control: pedal, minimum volume, torque adjustment screw
Dimensions (W x D x H): 90 x 268 x 62 mm / 3.54" x 10.55" x 2.44" (including rubber feet)
Weights: 1.3 kg / 2.87 lbs.
Included Items: EXPRESSION PEDAL jack dedicated stereo cable
