GS Music e7 Blue

The GS e7 is a subtractive synthesis polyphonic analog synthesizer. The sound generation is carried out in a total analog way. Each voice has two voltage controlled oscillators (VCO), a noise source, a mixer, a voltage controlled filter (VCF) and a voltage controlled amplifier (VCA). The control signals are digitally generated by a microcontroller, which is capable of processing three low frequency oscillators (LFO) and two envelopes (EG) of the ADSR type. In addition, it incorporates an effects processor with chorus and delay.

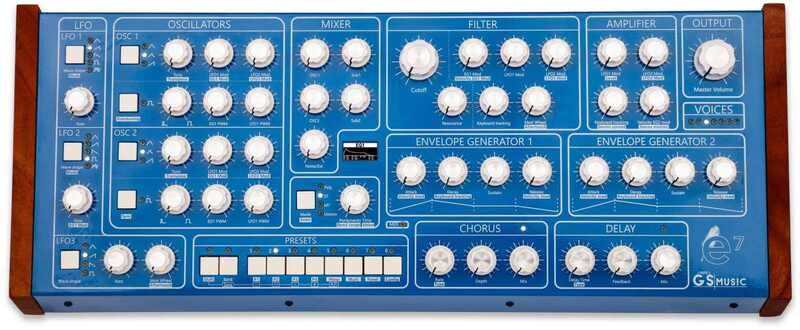

The GS e7 interface was designed to be simple and intuitive.
It also has MIDI connections, USB, balanced stereo audio outputs, headphone output and CV inputs.

Specs

Polyphony: 7
Multitimbral: 4 parts
Oscillators: 2 voltage controlled analog oscillators (VCO) with sub-oscillators. Hard sync.
Oscillator Waveforms: Triangular, Saw-Tri, Sawtooth, Pulse with PWM. It is possible to mix the pulse with the other waveforms.
Filter (VCF): 24dB / Oct low pass filter (4 poles) with resonance control.
Envolventes: 2 (Attack, Decay, Sustain, Release), Velocity to Attack
LFO: 3
LFO waveforms: Triangular, Ascending ramp, Descending ramp, Square, Sample and Hold
Effects: Chorus, Delay
Presets: 512 programas, 128 multi
Other features: MIDI Polyphonic Expression (MPE)
Conennections: MIDI IN, MIDI OUT, MIDI Thru, USB, Pitch CV, Cutoff CV, Gain CV, Ext input, Audio Out (L/Mono, R, 1/4″ TRS balanced), Headphones
Power supply: DC 12V 3A
Dimensions: 520mm x 190mm x 108mm
Dimensions (with packaging): 620mm x 290mm x 230mm
Weight: 3.8 kg
Weight (with packaging): 5.2 kg
