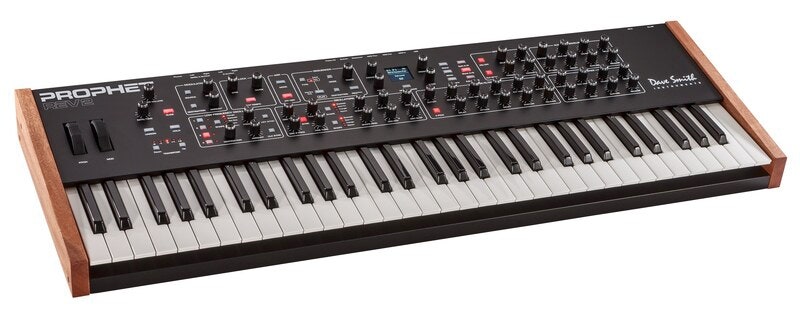

The Prophet REV2 is Dave Smith’s reimagining of his Prophet ’08 poly synth — a modern classic that has appeared on countless recordings and stages since its debut in 2007. As Dave puts it, “The REV2 is the realization of our effort to enhance and improve everything we could about the original design — all at a more accessible price.”
- 8-Voice Polyphonic
- 2 digitally controlled analog oscillators (DCOs) per voice (plus sub octave on oscillator 1) with selectable sawtooth, triangle, saw/triangle mix, and pulse waves (with pulse-width modulation)
- Glide (portamento): separate rates per oscillator
- White noise generator
- Analog VCAs
- Hard sync
- 1 analog Curtis low-pass filter per voice, selectable 2- and 4-pole operation (self-resonating in 4-pole mode)
- 3 envelope generators: filter, VCA, and assignable (four-stage ADSR + delay); Envelope 3 can loop.
- Polyphonic step sequencer with up to 64 steps (6 notes per step), and ties and rests. Separate 16 x 4 gated step sequencer. Each layer can have a separate sequence.
- 4 LFO’s with key sync per LFO
- Programmable arpeggiator with up, down, up+down, random, assign modes
- Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
- One, two, or three octave range
- Re-latching arpeggiation
- Note repeat
- 5-octave keyboard with semi-weighted action, velocity, and aftertouch
- 52 knobs and 20 buttons enable deep and comprehensive editing with little to no menu diving.
- Spring-loaded pitch wheel and assignable mod wheel
- 512 Factory Programs (4 banks of 128) and 512 fully editable User Programs with 2 layers (2 separate sounds) in each Program
- MIDI In, Out, Thru
- Main stereo audio output: 1/4″ unbalanced
- Output B stereo audio output: 1/4″ unbalanced
- Sustain pedal input: accepts normally on or normally off momentary footswitch.
- Pedal/CV input: responds to expression pedals or control voltages ranging from 0 to 5 VDC (protected against higher or negative voltages).
- Headphone output: 1/4″ stereo phone jack.
- IEC AC power inlet for internal power supply
- Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 30 watts maximum power consumption
- Oiled African mahogany wood end panels
- Dimensions: 12.70″ (32.26 cm) W x 35.12″ (89.20 cm) L x 3.80″ (9.65 cm) H (2.30″ at front edge; the feet account for 0.25″ of the total height)
- Weight: 20.5 lbs. (9.3 kg)
