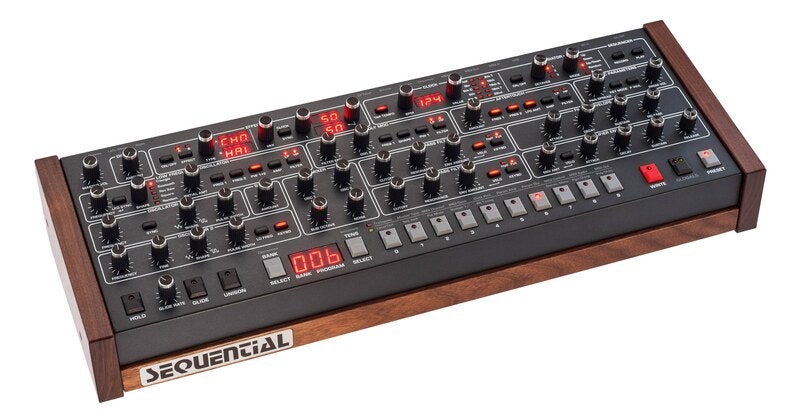

DSI-1600 PROPHET 6 MODULE

DAVESMITHINSTRUMENTS

Desktop version av Prophet 6 Vintage with a Modern Twist

Tuote ei ole tilattavissa
€0,00 /kpl
(€0,00 alv 0%)
Tuoteno: 1047494

Tuotetiedot


Prophet-6 Desktop Specifications

OSCILLATORS
  • Two newly designed, discrete VCOs per voice
  • Continuously variable wave shape (triangle, sawtooth, pulse, square) per oscillator
  • Pulse width per oscillator
  • Hard sync: oscillator 1 syncs to oscillator 2
  • Triangle sub-octave generator (oscillator 1) per voice
  • Low frequency mode (oscillator 2)
  • Keyboard tracking on/off (oscillator 2)
  • Oscillator slop amount for increased tuning instability, from subtle to extreme
MIXER
  • Oscillator 1 amount
  • Oscillator 1 sub-octave amount
  • Oscillator 2 amount
  • White noise amount
HIGH-PASS FILTER
  • Two-pole, resonant, high-pass filter per voice
  • Bi-polar filter envelope amount
  • Velocity modulation of envelope amount
  • Keyboard tracking: off, half, full
LOW-PASS FILTER
  • Four-pole, resonant, low-pass filter per voice, inspired by the original Prophet 5 filter
  • Filter can be driven into self-oscillation with the Resonance control
  • Bi-polar filter envelope amount
  • Velocity modulation of envelope amount
  • Keyboard tracking: off, half, full
FILTER ENVELOPE
  • Four-stage (ADSR) envelope generator
AMPLIFIER ENVELOPE
  • Four-stage (ADSR) envelope generator
  • Velocity modulation of envelope amount
LOW FREQUENCY OSCILLATOR
  • Five wave shapes: triangle, sawtooth, reverse sawtooth, square, and random (sample and hold)
  • Clock sync (internal or external MIDI clock)
  • Initial amount
  • Mod destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 1 and 2 pulse width, low-pass filter cutoff, high-pass filter cutoff
POLY MOD
  • Sources: filter envelope (bi-polar) and oscillator 2 (bi-polar)
  • Destinations: oscillator 1 frequency, oscillator 1 shape, oscillator 1 pulse width, low-pass filter cutoff, high-pass filter cutoff
AFTERTOUCH
  • Source: channel (mono) aftertouch with bi-polar amount
  • Destinations: oscillator 1 frequency, oscillator 2 frequency, LFO amount, amplifier envelope amount, low-pass filter envelope amount, high-pass filter envelope amount
CLOCK
  • Master clock with tap tempo
  • BPM control and display
  • MIDI clock sync
ARPEGGIATOR
  • Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
  • One, two, or three octave range
  • Up, down, up/down, random, and assign modes
SEQUENCER
  • Polyphonic step sequencer with up to 64 steps and rests
EFFECTS
  • Stereo analog distortion
  • Dual, 24-bit, 48 kHz digital effects, including: reverb (room, hall, plate, spring), delay (full bandwidth digital delay and emulated bucket brigade and tape delays), chorus, and phase shifter
  • Delay sync
  • True bypass maintains fully analog signal path when digital effects are off
PERFORMANCE CONTROLS
  • Polyphonic glide (portamento)
  • Hold switch latches held notes on
  • Unison (monophonic) mode with configurable voice count, from one to all six voices, and key modes
  • Preset switch: when off, the front panel is live; what you see is what you hear
PATCH MEMORY
  • 500 user and 500 factory programs in 10 banks of 100 programs each
  • Direct program access, including Prophet 5-style single-button access to the current set of 10 programs
IN/OUT
  • Left and right audio outputs (2 x 1/4” phone jack)
  • Headphone output (stereo, 1/4” phone jack)
  • MIDI in, out, and thru ports
  • USB for bidirectional MIDI communication
  • Low-pass filter cutoff expression pedal input
  • Volume expression pedal input
  • Sustain footswitch input
  • Sequencer start/stop footswitch input
POWER
  • IEC AC power inlet for internal power supply
  • Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 30 watts maximum power consumption
PHYSICAL SPECS
  • 21.25” L x 7.43” W x 4.4″ H (54.0 cm x 18.9 cm x 11.2 cm)
  • 13.0 lbs (5.9 kg)
  • Walnut end panels and trim
