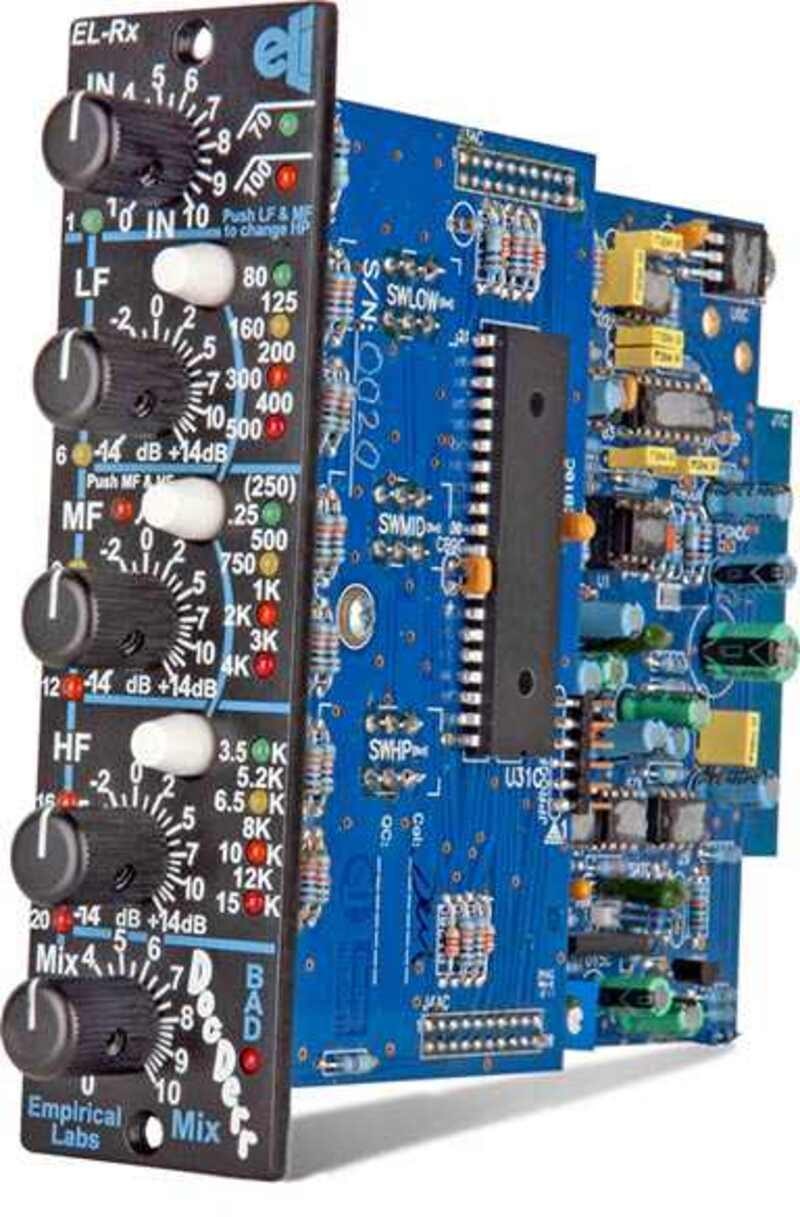

EmpiricalLabs DocDerr

500 Series Multi-Purpose Tone Module

€1135,00/kpl
Lisää ostoskoriin

Tilapäisesti loppu

Specifications

  • Frequency Response – 3 Hz to 180 kHz on eq section (-3dB points).
  • Dynamic Range – 120 dB from maximum output (.5%THD soft clipping) to minimum output. Noise floor with Mix on 0 is typically – 91dBu.
  • Distortion – between .0006% and 10% at 1KHz, depending on mode and settings.
  • I/O – Maximum Input before hard clipping – +22dBm, “ Line In” mode. Maximum Output (Mix at 0) – +28.5dBm
  • Impedance – 120k Ohm, Instrument In Mode, output impedance is less than 75 ohms.  20K input impedance in balanced Line in mode.
  • Compressor Time Constants – Attack time is around 1mS. Release .2 sec, fixed internally. Stereo Linkable for stereo tracks. With the EL500 powered rack, the push of a button enables linking.
