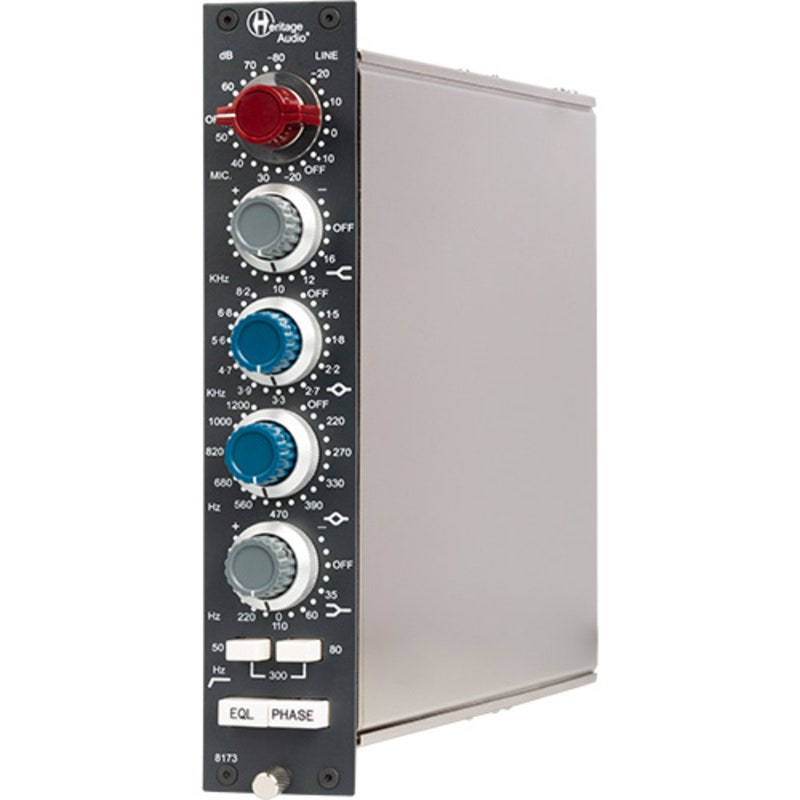

Heritage Audio 8173

The 8173 is a 73-sized module, adding the 81 mid bands to the 73 classic design, creating an equalizer that is really hard to beat. It features a Baxandall type high shelf band, but with the addition of a high frequency selector switch offering 3 different frequencies instead of the fixed one at 12 kHz. The result is a 4-band tone monster that combines the best features of the vintage modules in an incredibly smart and tasteful way, at a price lower than most current offerings.

• Class A mic preamp with 80 dB of gain, plus a sweet-sounding 4-band EQ.
• Class A line-level amplifier with 10 dB of gain.
• Equalizer’s mid-bands cover nearly the entire audible frequency range.
• Low and high shelving EQs with Baxandall curves for smooth, natural-sounding response.
• High-pass filter, switchable between 50 Hz, 80 Hz, and 300 Hz.
• +48 V phantom power is supplied by your 80 Series chassis.
• Maximum output: Greater than +26 dBu into 600 Ω.
• THD: Less than 0.025 % at 1 kHz, Less than 0.05 % at 100 Hz.
• Frequency response: 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB).
• Maximum Gain: Slightly greater than 80 dB.
• Noise: Less than -100 dBu.
• Power consumption: Less than 110 mA @24 V DC.
• Dimensions (W x H x L): 45 mm x 224 mm x 304 mm. (Standard Series 80 Module)
